Jaw crushers parts are engineered for the toughest feed materials in the primary crushing stage. Matec Solutions supply different manganese jaw die profiles and thicknesses to achieve the perfect match for applications including quarrying, mining and aggregates.

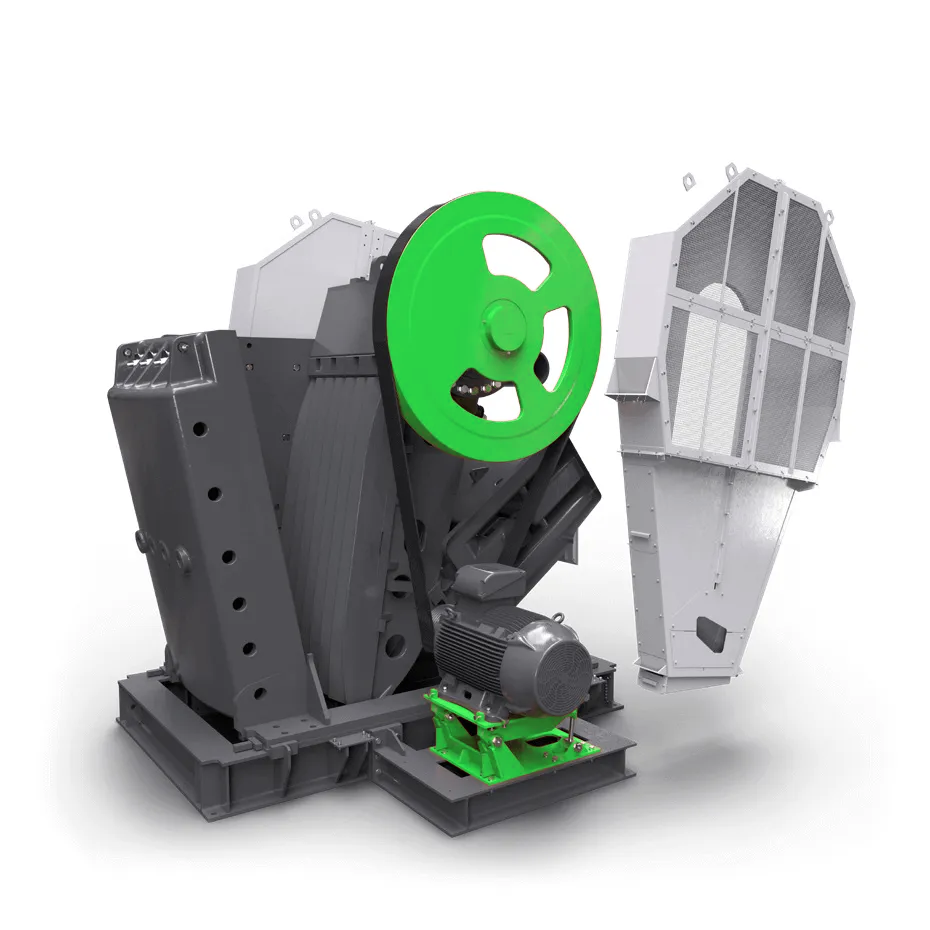

Sandvik CJ412-JM1208 Jaw Crusher Parts List:
Parts No.
Items
10-314-262-000
CHEEK PLATE UPPER 14MNCR
10-314-263-000
CHEEK PLATE LOWER 14MNCR
10-314-262-000
CHEEK PLATE UPPER 14MNCR
10-314-263-000
CHEEK PLATE LOWER 14MNCR
840.0678-00
BOLT, HEXAGONAL ISO4014-M24X160-8.8-UNPLTD
845.0387-00
NUT, HEXAGONAL, TORQUE (SELF-LOCKING)
847.0124-00
WASHER BRFB 25X45 T=4 mm
402.4720-01
WASHER FLEXIBLE J11/CJ211
402.4721-01
PLATE, STEEL D105x25x10
400.0309-001 / 10-214-269-000
SUPPORT BAR T30 F&M,  /JM1208 @T=30 mm
840.0656-00
BOLT HEX ISO4014-M20X140-8.8-A3A
845.0010-00
NUT HEX ISO4032-M20-8-TZN
847.0132-00
WASHER BRB 3x21/36
845.0018-00
LOCKNUT, HEXAGONAL, NYLON INSERT ISO10511-M20-8-A3A
400.0411-001
JAW PLATE F+M WT 14MNCR
400.0411-002
JAW PLATE F+M WT 18MNCR
400.0407-001
JAW PLATE F C 14MNCR
400.0408-001
JAW PLATE M C 14MNCR
400.0407-002
JAW PLATE F C 18MNCR
400.0408-002
JAW PLATE M C 18MNCR
400.0413-002
JAW PLATE F HD 18MNCR
400.0425-002
JAW PLATE F CC 18MNCR
400.0413-001
JAW PLATE F HD 14MNCR
402.4744-02
JAW PLATE F ST 18MNCR
402.4744-01
JAW PLATE F ST 14MNCR
400.0425-001
JAW PLATE F CC 14MNCR
400.0412-002
JAW PLATE M HD 18MNCR
400.0420-002
JAW PLATE M CC 18MNCR
400.0412-001
JAW PLATE M HD 14MNCR
400.0420-001
JAW PLATE M CC 14MNCR
402.4745-02
JAW PLATE M ST 18MNCR
402.4745-01
JAW PLATE M ST 14MNCR
10-314-246-000
UPPER TENSION WEDGE FIXED & MOVABLE
00-920-144-909
SCREW, HEXAGONAL ISO4017-M33X440-
00-921-203-033
NUT, HEXAGONAL ISO4032-M33-8-A3A
00-921-224-133
NUT, HEXAGONAL, THIN
89-442-690-000
WASHER 1.375-AS1237-GR250-"
53-469-827-000
FLEXIBLE WASHER PU 90 SH D110XD35X50
53-466-463-000
PROTECTION PLATE M&F 6MM JM1208
53-173-768-500
BEARING HOUSING NON-LOCATING BEARING
10-115-284-500
BEARING HOUSING LOCATING BEARING
840.1189-00
BOLT, HEXAGONAL M6S 42X3X160
868.0482-00
ROLLER BEARING (outer) 23164 CCK/W33/C3
868.0484-00
SLEEVE AOH 3164 G TR340x5
402.7391-01
LABYRINTH RING
873.0904-00
V-RING V-350A 315X345X25
402.4245-00
LABYRINTH COVER
840.0077-00
BOLT, HEXAGONAL ISO4017-M20X50-10.9-UNPLTD
847.0132-00
WASHER BRB 3x21/36
402.7392-01
LABYRINTH RING
873.0904-00
V-RING V-350A 315X345X25
402.3894-01
KEY
10-114-242-500
SWING JAW
868.0483-00
BEARING, ROLLER, SPHERICAL (inner) 24068 CC/C3W33
402.7389-00
BEARING COVER
840.0077-00
BOLT, HEXAGONAL ISO4017-M20X50-10.9-UNPLTD
847.0132-00
WASHER BRB 3x21/36
402.7388-01
LABYRINTH RING
873.0904-00
V-RING V-350A 315X345X25
845.0182-00
SHAFT NUT HM 56T
847.0102-00
WASHER, LOCK ISO2982-2 - MB 56
845.0170-00
NUT, LOCK HM44T TR220X4
847.0098-00
WASHER, LOCK ISO2982-2 - MB 44
402.4263-00
ECCENTRIC SHAFT END CAP
840.0044-00
SCREW, HEXAGONAL ISO4017-M12X25-8.8-A3A
847.0180-00
WASHER, LOCK, HELICAL SPRING, REGULAR
53-366-391-002
COUNTERWEIGHT FOR STATIONARY T=15
53-366-391-001
COUNTERWEIGHT FOR STATIONARY T=10
840.0078-00
SCREW M6S 20X60 8.8 ISO4017 (FOR STATIONARY)
840.0677-00
BOLT, HEXAGONAL ISO4017-M24X150-8.8-A3A (FOR MOBILE)
847.0184-00
WASHER, SPRING DIN137-B24-ST-UNPLTD (FOR MOBILE)
847.0182-00
WASHER, SPRING DIN137-B20-ST-UNPLTD
847.0132-00
WASHER BRB 3x21/36 (FOR STATIONARY)
53-466-463-000
PROTECTION PLATE M&F 6MM JM1208
400.0309-001 / 10-214-269-000
SUPPORT BAR F&M, /JM1208 @T=30 mm
840.1064-00
BOLT HEX ISO4014-M20X220-8.8-TZN
845.0010-00
NUT HEX ISO4032-M20-8-TZN
847.0132-00
WASHER BRB 3x21/36
845.0018-00
LOCKNUT, HEXAGONAL, NYLON INSERT ISO10511-M20-8-A3A
10-314-246-000
UPPER TENSION WEDGE FIXED & MOVABLE
59-942-843-001
SCREW M6S 33X880/160 8.8
00-921-203-033
NUT, HEXAGONAL ISO4032-M33-8-A3A
00-921-224-133
NUT, HEXAGONAL, THIN
89-442-690-000
WASHER 1.375-AS1237-GR250-"
53-469-827-000
FLEXIBLE WASHER PU 90 SH D110XD35X50
10-214-255-000
DEFLECTOR PLATE /JM1206/1208
53-367-195-001
SHIM 10 MM / JM1208 (old units)
53-367-195-002
SHIM 12 MM / JM1208 (old units)
53-367-195-003
SHIM 15 MM / JM1208 (old units)
53-367-195-004
SHIM 20 MM /JM1208 (old units)
53-367-195-005
SHIM 25 MM /JM1208 (old units)
400.0817-001
TOGGLE SEAT HOLDER JM1208 (newer units)
10-314-495-000
TOGGLE SEAT HOLDER JM1208 (older units)
400.0818-001
TOGGLE SEAT UPPER
17-201-650-001
TOGGLE SEAT LOWER (old machines upper too)
400.0228-001
TOGGLE PLATE L:380MM
400.0251-001
TOGGLE PLATE L:415MM
10-315-266-000
TOGGLE PLATE L:520MM (STD)
10-214-523-000
TOGGLE PLATE L:600MM (STD)
00-920-144-333
BOLT HEX ISO4014-M24X110-8.8-TZN (older machines for guide)
400.1237-001
TOGGLE SEAT RETAINER
00-927-101-140
WASHER, LOCK, HELICAL SPRING, REGULAR (older machines for guide)
840.0046-00
SCREW, HEXAGONAL ISO4017-M12X35
847.0147-00
WASHER, PLAIN ISO7089-12-200HV-A3A
17-201-552-501
GUIDE (older machines)
400.0707-001
SIDE BLOCK
840.0046-00
SCREW, HEXAGONAL ISO4017-M12X35
847.0147-00
WASHER, PLAIN ISO7089-12-200HV-A3A
400.0778-001
C.S.S. WEDGE
400.0758-001
GUIDE PLATE
841.0040-00
SCREW, CAP, HEXAGON SOCKET HEAD ISO4762-M20X80-8.8-A3A
847.0132-00
WASHER BRB 3x21/36
853.0988-00
PIN CP 30M6x70 SMS 2374
400.0753-901
HYDRAULIC CYLINDER
17-106-668-001
Pin for Retraction Bar JM1206/1208
53-366-419-503
RETRACTION ROD CJ412/JM1208 (with clevis and rod)
400.0450-001
SPRING, TENSION ROD CJ412/JM1208
17-202-779-001
SPRING, TENSION ROD 1208/1108
53-466-668-500
TENSION ROD CLEVIS /JM1208
00-921-203-042
NUT, HEXAGONAL ISO4032-M42-8-BZP
53-466-415-006
Retraction Bar JM1208 640mm long
53-466-415-001
Retraction Bar JM1208 /400mm long
840.0067-00
SCREW M6S 16X45
879.0786-00
PULLEY, V-BELT TL 500 4XSPB/3535
879.0564-00
PULLEY, V-BELT 450 MGT125 8×SPC
869.0378-00
BUSHING 3020-55
869.0373-00
BUSHING 3020-42
902.1212-00
VALVE, COUNTERBALANCE VALVE 62 BAR
902.1100-00
VALVE, PRESSURE REDUCING DR 08P
902.1099-00
VALVE, DIRECTIONAL WK10J-01-C-N-O
77007561 / 902.0914-00
COIL, MAGNETIC 24VD
875.0255-00
V-BELT SPC 9000
875.0254-00
V-BELT SPC 8000
875.0189-00
V-BELT 8V 3550
875.0358-00
V-BELT 5V 3550
875.0196-00
V-BELT 5V 3150
