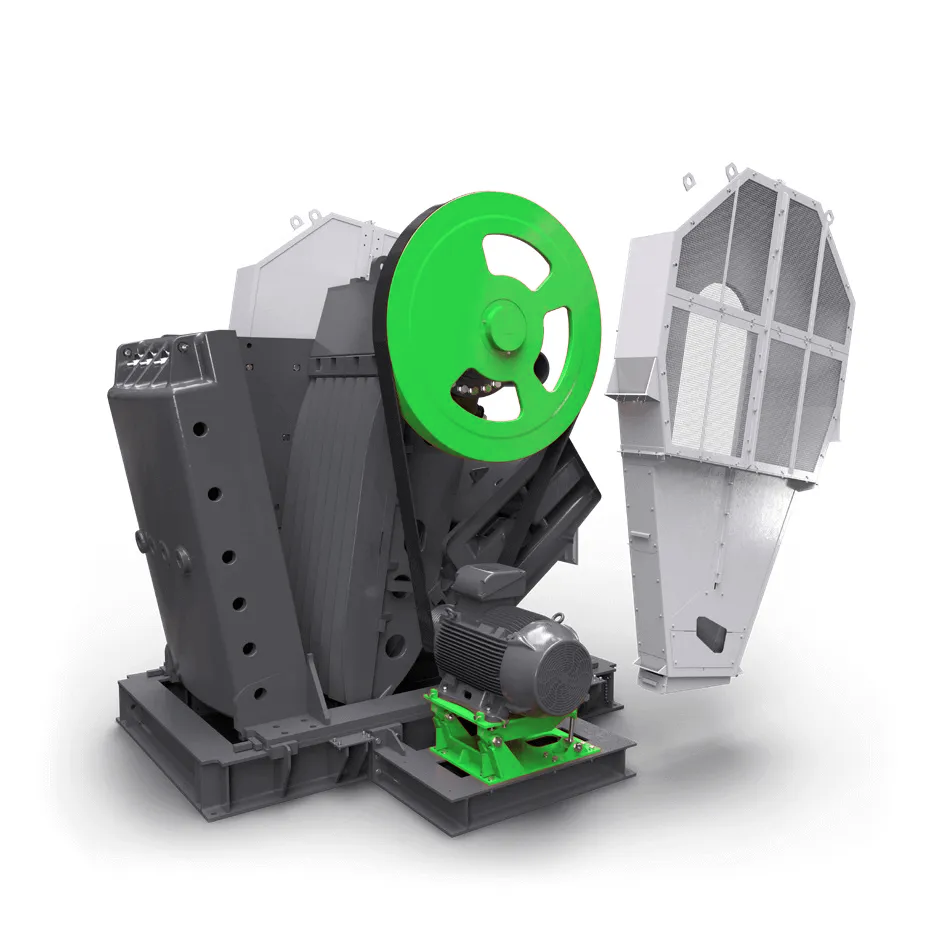

Sandvik CJ612-JM1211 Jaw Crusher Parts

Matec Solutions offer genuine replacement for Sandvik CJ/JM jaw crusher parts, and ensure the proper fit, form and function to reduce maintenance issues and increase longevity. Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

Jaw crushers parts are engineered for the toughest feed materials in the primary crushing stage. Matec Solutions supply different manganese jaw die profiles and thicknesses to achieve the perfect match for applications including quarrying, mining and aggregates.

Sandvik CJ612-JM1211 Jaw Crusher Parts List:

Parts No.	Items
402.4239-01	CHEEK PLATE UPPER 14MNCR
402.4635-01	CHEEK PLATE LOWER 14MNCR
402.4239-01	CHEEK PLATE UPPER 14MNCR
402.4635-01	CHEEK PLATE LOWER 14MNCR
840.0716-00	BOLT HEX ISO4014-M36X160-8.8-A3
845.0273-00	NUT SELF-LOCKING ISO7040-M36-8-A3A
847.0162-00	WASHER DIN125A-M36-HB200-UNPLTD
400.0736-001	WASHER FLEXIBLE
400.0737-001	PLATE, STEEL
402.4258-00	LOWER SUPPORT WEDGE, FIXED JM1211
840.1053-00	BOLT HEX ISO4014-M36X240-8.8-A3A (with shim plate)
840.0718-00	BOLT HEX ISO4014-M36X180-8.8-A3A (with wear plate only)
845.0221-00	NUT ISO4032-M36-8-TZN
847.0026-00	WASHER BRB 6X50X85
845.0227-00	LOCK NUT M36 ML6M (on the outermost bolts)
400.0443-002	JAW PLATE M 1P CC 18MNCR
400.0443-001	JAW PLATE M 1P CC 14MNCR
400.2266-002	JAW PLATE F 1P CC 18MNCR
400.2266-001	JAW PLATE F 1P CC 14MNCR
402.4747-01	JAW PLATE F 1P ST 14MNCR
402.4747-02	JAW PLATE F 1P ST 18MNCR
402.4748-01	JAW PLATE M 1P ST 14MNCR
402.4748-02	JAW PLATE M 1P ST 18MNCR
400.0440-001	JAW PLATE F WW 14MNCR
400.0442-001	JAW PLATE F MIDDLE WW 14MNCR
400.0438-001	JAW PLATE M WW 14MNCR
400.0439-001	JAW PLATE M MIDDLE WW 14MNCR
400.0440-002	JAW PLATE F WW 18MNCR
400.0442-002	JAW PLATE F MIDDLE WW 18MNCR
400.04383-002	JAW PLATE M WW 18MNCR
400.0439-002	JAW PLATE M MIDDLE WW 18MNCR
400.0426-002	JAW PLATE F HD 18MNCR
400.0426-001	JAW PLATE F HD 14MNCR
400.0427-002	JAW PLATE F MIDDLE HD 18MNCR
400.0427-001	JAW PLATE F MIDDLE HD 14MNCR
400.0423-001	JAW PLATE M HD 14MNCR
400.0423-002	JAW PLATE M HD 18MNCR
400.0424-001	JAW PLATE M MIDDLE HD 14MNCR
400.0424-002	JAW PLATE M MIDDLE HD 18MNCR
402.4569-01	UPPER TENSION WEDGE FIXED 14MNCR
402.4570-00	UPPER TENSION WEDGE FIXED T50 14MNCR
650.0311-01	BOLT M36 X 340 (with wear plate only)
650.0311-02	SCREW M36X390 (with shim plate only)
845.0221-00	NUT ISO4032-M36-8-TZN
847.0162-00	WASHER DIN125A-M36-HB200-UNPLTD
402.3915-03	WASHER D190/39X10
650.0235-01	WASHER QUALITY 152 160/52x50
402.4668-01	PROTECTION PLATE FIXED/MOVABLE
53-173-768-500	BEARING HOUSING NON-LOCATING BEARING
10-115-284-500	BEARING HOUSING LOCATING BEARING
402.4668-01	PROTECTION PLATE FIXED/MOVABLE
402.3280-00	LOWER SUPPORT WEDGE, MOVABLE JM1211
840.1052-00	BOLT HEX ISO4014-M36X220-8.8-UNPLTD
845.0221-00	NUT ISO4032-M36-8-TZN
847.0162-00	WASHER DIN125A-M36-HB200-UNPLTD
402.2320-00	UPPER TENSION WEDGE MOVABLE
650.0310-AC	SCREW M36 X 940 /JM1211
845.0221-00	NUT ISO4032-M36-8-TZN
847.0162-00	WASHER DIN125A-M36-HB200-UNPLTD
402.3915-03	WASHER D190/39X10
650.0235-01	WASHER QUALITY 152 160/52x50
402.4250-01	DEFLECTOR PLATE 14MNCR
840.1139-00	BOLT HEX ISO4017-M30X150-8.8-A3A
845.0013-00	NUT, HEXAGONAL ISO4032-M30-8-A3A
402.4270-01/400.2174-001	TOGGLE SEAT HOLDER
670.0261-001	TOGGLE SEAT UPPER (HYDR STYLE OF SETTING)
402.4269-01/400.1680-001	TOGGLE SEAT UPPER/LOWER (MECHANICAL STYLE OF SETTING)
402.4269-01/400.1680-001	TOGGLE SEAT UPPER/LOWER
402.4607-01	TOGGLE PLATE 815 MM (STD)
402.4608-01	TOGGLE PLATE 765 MM (STD)
840.0054-00	SCREW, HEXAGONAL ISO4017-M12X80-8.8-A3A
847.0147-00	PLAIN WASHER BRB 2X13/24
402.4274-00	SIDE BLOCK, LHD
402.4273-00	SIDE BLOCK, RHD
17-106-668-001	PIN CLEVIS RETRACTION ROD
855.0017-00	RING, RETAINING, EXTERNAL
53-366-419-506	RETURN ROD WITH CLEVIS AND ROD
127.0006-27	PRESSURE SPRING /JM1211
53-466-415-009	RETRACTION ROD 1690 MM
908.0408-00	CYLINDER, HYDRAULIC D110/70-150
