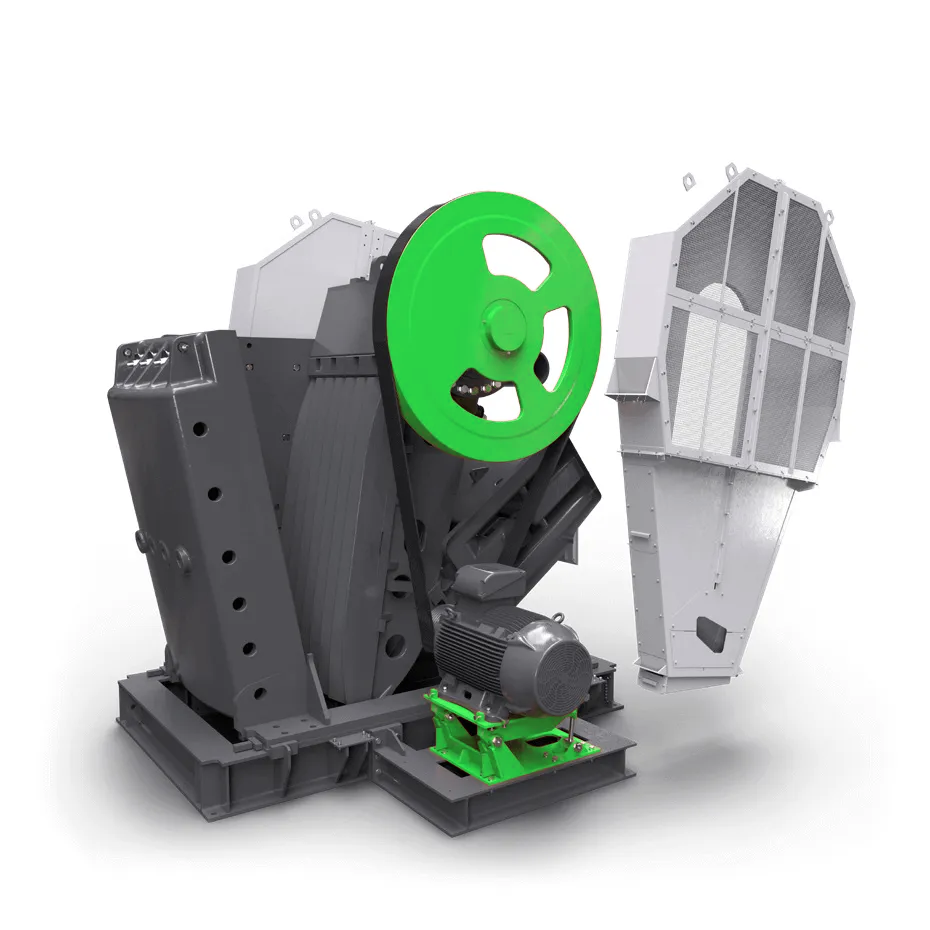

Sandvik CJ411-JM1108 Jaw Crusher Parts

Matec Solutions offer genuine replacement for Sandvik CJ/JM jaw crusher parts, and ensure the proper fit, form and function to reduce maintenance issues and increase longevity. Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

Jaw crushers parts are engineered for the toughest feed materials in the primary crushing stage. Matec Solutions supply different manganese jaw die profiles and thicknesses to achieve the perfect match for applications including quarrying, mining and aggregates.

Sandvik CJ411-JM1108 Jaw Crusher Parts List:

Parts No.	Items
10-314-262-000	CHEEK PLATE UPR XT610 FATBOY
10-314-263-000	CHEEK PLATE LOW XT610 FATBOY
10-314-262-000	CHEEK PLATE UPR XT610 FATBOY
10-314-263-000	CHEEK PLATE LOW XT610 FATBOY
840.0678-00	BOLT, HEXAGONAL ISO4014-M24X160-8.8-UNPLTD
845.0387-00	NUT, HEXAGONAL, TORQUE (SELF-LOCKING)
847.0124-00	WASHER BRFB 25X45 T=4 mm
402.4720-01	WASHER FLEXIBLE J11/CJ211
402.4721-01	PLATE, STEEL D105x25x10
400.0309-001 / 10-214-269-000	SUPPORT BAR T30 F&M, ¬†/JM1208 @T=30 mm
840.0660-00	BOLT, HEXAGONAL ISO4014-M20X180-8.8-A3A
845.0203-00	NUT M20 NYLOC
847.0132-00	WASHER BRB 3x21/36
400.0437-002	JAW PLATE F CC 18MNCR
400.0433-002	JAW PLATE M CC 18MNCR
400.0436-002	JAW PLATE F+M WT 18MNCR
400.0437-001	JAW PLATE F CC 14MNCR
400.0433-001	JAW PLATE M CC 14MNCR
400.0436-001	JAW PLATE F+M WT 14MNCR
400.0409-001	JAW PLATE F C 14MNCR
400.0410-001	JAW PLATE M C 14MNCR
400.0409-002	JAW PLATE F C 18MNCR
400.0410-002	JAW PLATE M C 18MNCR
10-314-385-000	UPPER TENSION WEDGE FIXED
00-920-144-909	BOLT, HEXAGONAL ISO4017-M33X440-8.8-A3A
00-921-203-033	NUT, HEXAGONAL ISO4032-M33-8-A3A
00-921-224-133	NUT, HEXAGONAL, THIN
89-442-690-000	WASHER 1.375-AS1237-GR250-"
53-469-827-000	FLEXIBLE WASHER PU 90 SH D110XD35X50
53-466-783-000	PROTECTION PLATE FIXED
53-173-767-500	BEARING HOUSING, FREE
10-115-283-500	BEARING HOUSING, LOCATING
53-373-766-000	TWIN NUT M42X3
10-214-415-000	LABYRINTH RING
873.1327-00	V-RING V-250A
10-214-416-000	LABYRINTH COVER
10-214-417-000	LABYRINTH
873.0910-00	V-RING V-250A
53-167-440-500	SWING JAW ASSEMBLY
10-214-388-000	LABYRINTH COVER
10-214-414-000	LABYRINTH RING
400.2739-001	ECCENTRIC SHAFT
53-466-783-000	PROTECTION PLATE MOVABLE
400.0309-001 / 10-214-269-000	SUPPORT BAR T30 F&M, /JM1208 @T=30 mm
840.0660-00	BOLT, HEXAGONAL ISO4014-M20X180-8.8-A3A
845.0203-00	NUT M20 NYLOC
847.0132-00	WASHER BRB 3x21/36
10-314-385-000	UPPER TENSION WEDGE MOVABLE
59-942-843-001	BOLT, HEXAGONAL ISO4017-M33X880-8.8-A3A
00-921-203-033	NUT, HEXAGONAL ISO4032-M33-8-A3A
00-921-224-133	NUT, HEXAGONAL, THIN
89-442-690-000	WASHER 1.375-AS1237-GR250-"
53-469-827-000	FLEXIBLE WASHER PU 90 SH D110XD35X50
10-214-384-000	DEFLECTOR PLATE
10-314-522-000	TOGGLE SEAT HOLDER
89-242-895-000	TOGGLE SEAT UPPER
89-242-895-000	TOGGLE SEAT LOWER
89-242-894-000	TOGGLE PLATE
17-201-552-501	RETAINER, TOGGLE SEAT
840.0673-00	BOLT, HEXAGONAL ISO4017-M24X110-8.8-A3A
847.0184-00	WASHER, SPRING DIN137-B24-ST-UNPLTD
53-367-176-500	SIDE BLOCK
400.1575-901	PIN CLEVIS RETRACTION ROD
53-366-419-501	RETURN ROD WITH CLEVIS AND ROD
400.0450-001	SPRING, TENSION ROD
