Metso C3054 Jaw Crusher Parts

Metso C3054 Jaw Crusher Parts

Product Item:73


  • Product Detail
  • FAQs

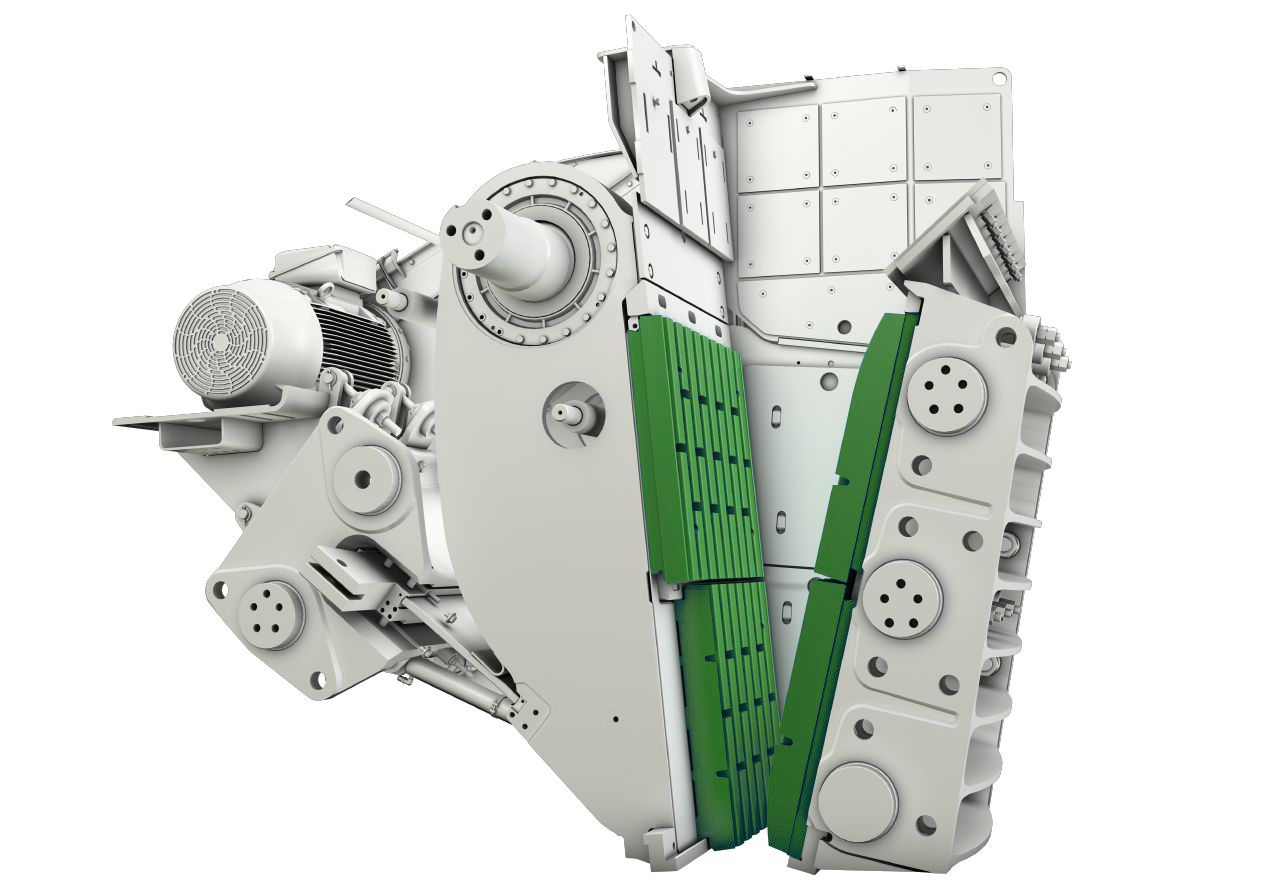

We offer genuine replacement for Metso C series jaw crusher parts, and ensure the proper fit, form and function to reduce maintenance issues and increase longevity. The Metso C series jaw crusher is a compression type crusher. Feed material is crushed between fixed and movable jaw dies, engineered for the toughest feed materials in the primary crushing stage.

Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

Matec Solutions supply different manganese jaw die profiles and thicknesses to achieve the perfect match for applications including quarrying, mining and aggregates.


Metso C3054 jaw crusher parts list:

Part Number Description Part Number Description
584955 PITMAN ASSY C3054 587740 RETURN ROD C3054
585257 WEDGE C3054 XT710 916160 WEDGE PAIR C3055
585315 WEDGE C3054 XT710 916834 SUPPORT C3055
585353 CHEEK PLT UPR C3054 916946 TOGGLE PLATE C3055
585354 CHEEK PLT LOW C3054 920711 SHAFT C3055
585432 FASTENING ITEM C3054 20MN5 921310 TOGGLE SEAT C3055
585838 PROTECTION PLATE C3054 921311 FLAT PLATE C3054
585841 PROTECTION PLATE C3054 927674 WEDGE PAIR C3055
586147 SPACER C3054 705302805000 ROLLER BRNG 24072 CC/W33/C3
586297 BRACKET C3054 MM0232802 JAW PLT FXD C3054 STANDARD 0861-512
586298 BRACKET C3054 MM0257640 JAW MVBL C3054 SUPER GRIP 0861-512
586299 BRACKET C3054 MM0322017 JAW MVBL SUPER GRIP STRAIGHT
586300 BRACKET C3054 MM0523894 SUPPORT HOLDER C3054
586738 BUSHING C-SERIES L=147 N01530648 BOLT HEX ISO4014-M30X220-8.8-A3A
587310 COVER RUBBER C3054 N11952743 JAW, FIXED QUARRY 1P
587597 PLATE C3054 N11952744 JAW MVBL QUARRY 1P
587681 SPRING GUIDE C3054 N88409004 HAMMER SCREW DIN261-M24X100-4.6
587700 SPRING BRACKET C3054 N88409022 HAMMER SCREW DIN261-M36X580-4.6 ER.4716
N88409030 HAMMER SCREW DIN261-M48X970-4.6 ER.47165
