Jaw crushers parts are engineered for the toughest feed materials in the primary crushing stage. Matec Solutions supply different manganese jaw die profiles and thicknesses to achieve the perfect match for applications including quarrying, mining and aggregates.

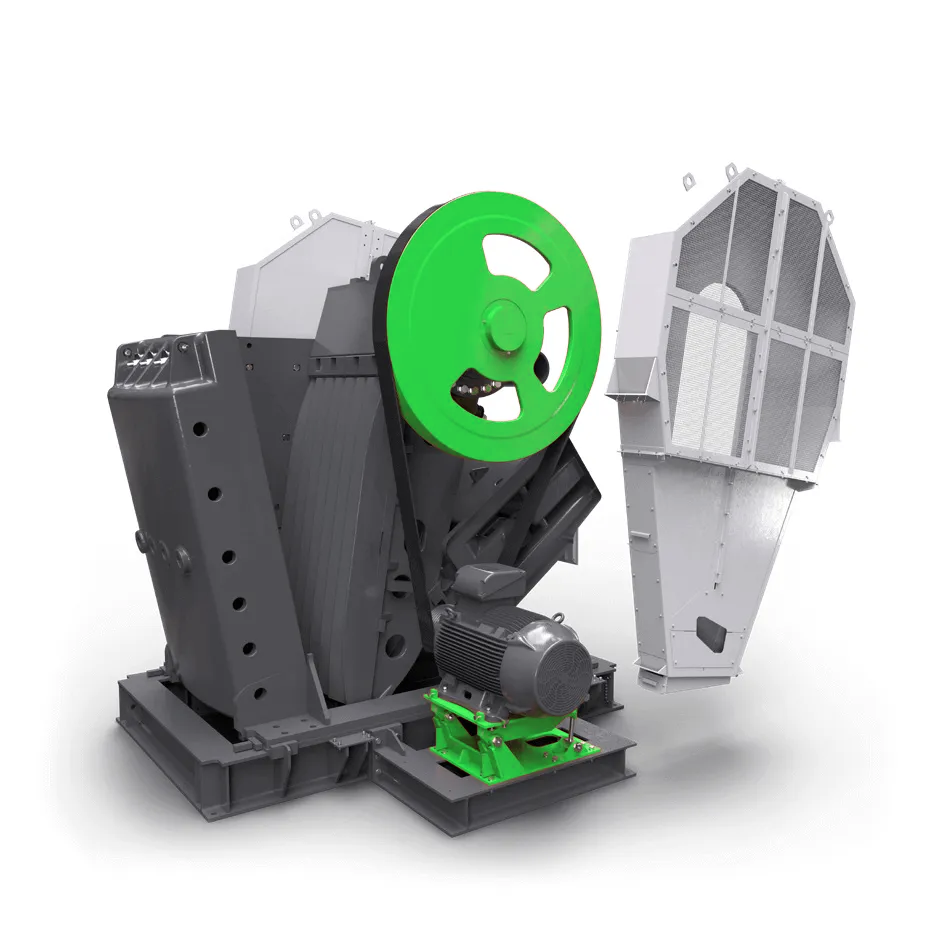

Sandvik CJ409-JM907 Jaw Crusher Parts List:
Parts No.
Items
10-314-386-000
CHEEK PLATE, UPPER XT610
10-314-404-000
CHEEK PLATE, LOWER XT610
10-314-386-000
CHEEK PLATE, UPPER XT610
10-314-404-000
CHEEK PLATE, LOWER XT610
840.0676-00
SCREW M6S 24X140 8.8 ISO 4014
845.0387-00
NYLOCK M24
847.0124-00
WASHER BRFB 25X45 T=4 mm
402.4720-01
WASHER FLEXIBLE
402.4721-01
PLATE, STEEL D105x25x10
10-314-481-000
LOWER SUPPORT WEDGE, FIXED
840.0934-00
SCREW, HEXAGONAL ISO4017-M20X150-8.8-A3A
845.0203-00
SMS-L ACC NUT M20 NYLOC
847.0132-00
WASHER BRB 3x21/36
400.2207-001
JAW PLATE F C 14MNCR
400.1101-001
JAW PLATE M C 14MNCR
400.0739-001
JAW PLATE F ST 14MNCR
400.0738-001
JAW PLATE M ST 14MNCR
400.2870-001
JAW PLATE F HD/CC 14MNCR
400.2869-001
JAW PLATE M HD/CC 14MNCR
400.2207-002
JAW PLATE F C 18MNCR
400.1101-002
JAW PLATE M C 18MNCR
400.0739-002
JAW PLATE F ST 18MNCR
400.0738-002
JAW PLATE M ST 18MNCR
400.2870-002
JAW PLATE F HD/CC 18MNCR
400.0418-001
JAW PLATE F C 14MNCR
400.0417-001
JAW PLATE M C 14MNCR
400.0483-002
JAW PLATE F+M WT 18MNCR
400.0483-001
JAW PLATE F+M WT 14MNCR
400.0418-002
JAW PLATE F C 18MNCR
400.0417-002
JAW PLATE M C 18MNCR
10-314-429-000
UPPER TIGHTENING WEDGE F+M 14MNCR
00-920-144-909
BOLT, HEXAGONAL ISO4017-M33X440-8.8-A3A
00-921-203-033
NUT, HEXAGONAL ISO4032-M33-8-A3A
00-921-224-133
NUT, HEXAGONAL, THIN
89-442-690-000
WASHER 1.375-AS1237-GR250-"
53-469-827-000
FLEXIBLE WASHER PU 90 SH D110XD35X50
53-467-117-000
PROTECTION PLATE FIXED
840.1188-00
BOLT, HEXAGONAL ISO4014-M42X3X140-8.8-A3A
847.0312-00
WASHER ISO7089-A42X7-SAE 1045 - 38/45 HRC-UNPLTD
868.0756-00
BEARING, ROLLER, SPHERICAL 23244 CCK/C3W33
868.0755-00
SLEEVE AOH 2344 SKF
873.1008-00
V-RING V-250A, NBR70
840.0068-00
SCREW, HEXAGONAL ISO4017-M16X50
847.0016-00
SMS-L ACC Washer BRB 3x17/30
873.1008-00
V-RING V-250A, NBR70
868.0819-00
BEARING, ROLLER, SPHERICAL 24148 CC/C3W33
840.0068-00
SCREW, HEXAGONAL ISO4017-M16X50
847.0016-00
SMS-L ACC Washer BRB 3x17/30
873.1008-00
V-RING V-250A, NBR70
847.0173-00
WASHER, LOCK ISO2982-2 - MB 27
840.0044-00
SCREW, HEXAGONAL ISO4017-M12X25-8.8-A3A
847.0180-00
WASHER, LOCK, HELICAL SPRING, REGULAR
53-366-391-002
COUNTERWEIGHT FOR STATIONARY T=15
53-366-391-001
COUNTERWEIGHT FOR STATIONARY T=10
840.0078-00
SCREW M6S 20X60 8.8 ISO4017 (FOR STATIONARY)
840.0654-00
BOLT, HEXAGONAL ISO4014-M20X120-8.8-UNPLTD (FOR MOBILE)
847.0182-00
WASHER, SPRING DIN137-B20-ST-UNPLTD
847.0132-00
WASHER BRB 3x21/36
53-467-117-000
PROTECTION PLATE MOVABLE
10-314-481-000
LOWER SUPPORT WEDGE, MOVABLE
840.0660-00
BOLT, HEXAGONAL ISO4014-M20X180-8.8-A3A
845.0203-00
SMS-L ACC NUT M20 NYLOC
847.0132-00
WASHER BRB 3x21/36
10-314-429-000
UPPER TIGHTENING WEDGE F+M 14MNCR
17-104-245-004
BOLT, HEXAGONAL M33-3.50X740 ISO4014 GR5.6
00-921-203-033
NUT, HEXAGONAL ISO4032-M33-8-A3A
00-921-224-133
NUT, HEXAGONAL, THIN
89-442-690-000
WASHER 1.375-AS1237-GR250-"
53-469-827-000
FLEXIBLE WASHER PU 90 SH D110XD35X50
10-314-479-000
DEFLECTOR PLATE
10-314-517-000
TOGGLE SEAT HOLDER
89-242-876-000
TOGGLE SEAT /JM907 UPPER
89-242-876-000
TOGGLE SEAT /JM907 LOWER
89-242-877-000
TOGGLE PLATE 500 MM
17-201-392-501
GUIDE TOGGLE PLATE GUIDE ASSY
840.0653-00
BOLT, HEXAGONAL ISO4014-M20X100-8.8-A3A
847.0182-00
WASHER, SPRING DIN137-B20-ST-UNPLTD
400.1648-901
PIN FOR RETRACTION ROD
00-921-402-040
RING, RETAINING, EXTERNAL DIN471-40X1.75-ST-ZNPH
53-467-395-500
TENSION ROD
400.0449-001
SPRING, TENSION ROD
53-367-366-500
SPRING SUPPORT
