Metso GP300 Cone Crusher Parts

Metso GP300 Cone Crusher Parts

Product Item:55


  • Product Detail
  • FAQs

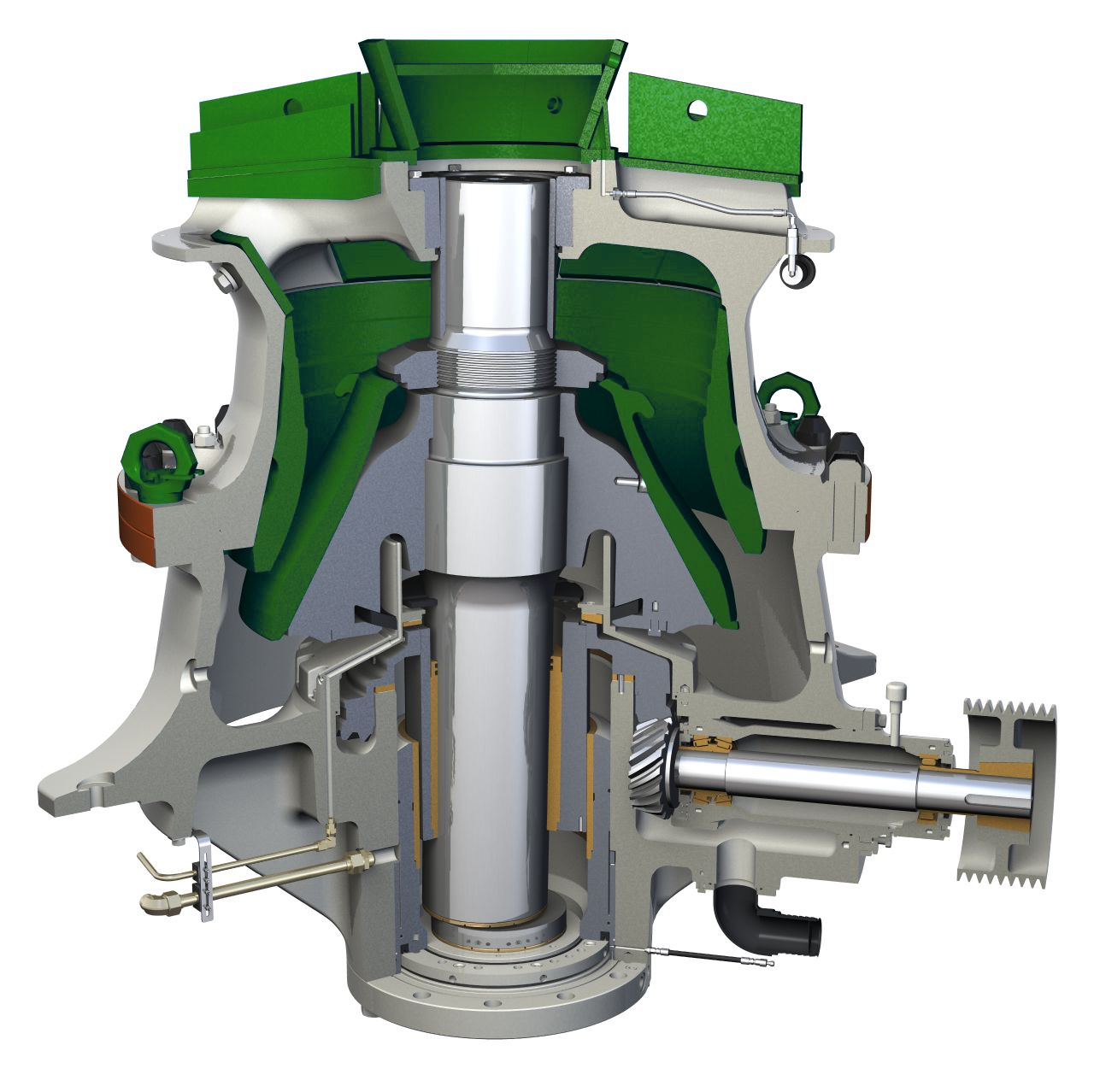

Matec Solutions is a professional supplier of compatible crusher spare parts to suit Metso GP cone crushers. We supply the genuine replacement parts to the original equipment. The Nordberg GP cone crusher is a compressive crusher in which feed material is crushed between a fixed bowl liner and a moveable mantle.

Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

GP300 Metso Crusher Parts List:

Part Number Description
188320 CASE GP300/GP300S
188322 CNTRSHFT GP300/GP300S
189223 HEAD GP300
189276 ECCENTRIC BUSHING G2612 25/32/40/50
292721 NUT TR300X12-8H GP300/S
292723 BRNG GP300/300S
292817 PROTECTION PLATE G12
292826 CNTRSHFT ASSY GP300/GP300S
295245 MAIN SHAFT GP300
295251 TOP BRNG G2612 25/32/40/50
340082 COVER GP300/300S
341053 PROTECTION PLATE G12
341327 SLIDE RING G2612
341336 PROTECTION BUSHING G2612
446421 SPACER RING GP300 & GP300S; ST 52-3
446428 O-RING GP300/300S
446429 O-RING GP300/300S
446430 O-RING GP300/300S
446432 O-RING GP300/300S
446517 O-RING GP300/300S
447394 SEAL G2612 ER.447394
447419 GUIDE RING G12
487516 PLATE LEVY
495365 SCREW RMVNG M48X90 G-SERIES
585351 LOW FRAME GP300/S
585614 COVER CASTING GP300
585664 COVER GP300 / GP300S
585701 COVER
905243 FRAME UPR GP300
910447 SLIP RING GP300
913757 PIPE G3310
915114 TOOL AND EQUIPMENT G3812, G2612
916188 FRAME ASSY UPR GP300
916189 MAIN SHAFT ASSY GP300
925784 BUSHING
925808 BRNG
925832 SHIM SHEET
930039 SCREW RET
931612 PISTON GP300/300S
931619 ECCENTRIC SHAFT
931714 FRAME BUSHING GP300/S
933913 SUB-FRAME ASSEMBLY GP300/GP300S
938157 O-RING GP300/300S
938379 THRUST BRNG GP300 & GP300S
942187 CNTRL BOX A2020 DCU GP-STD
7002152765 SEAL RING
7002420046 ELBOW ADAPTER GG306-NP20-20, (MALE 1 5/
704003814000 SCREW SLOT-HEAD ISO1207-M6X50-5.8-A3A
704103068600 PLUG DIN906-M12X1,5-ST ZNPH
705302060300 ROLLER BRNG DIN5412-NU2220ECP
705303160308 ROLLER BRNG 32220 J2
706201083422 PRSSR REL VALVE 0532002012 (35BAR), R9
706202557951 TAPERED SLEEVE 4030X95, 029R0095
706300790095 CNNCTN 20R6MXS
706300910001 PISTON SEAL UN600X550X25 PU 90 SH
706302285600 SEAL 270X311,5X18 ER.NRO.900303
814318940300 MANTLE F
814390455800 CONCAVE F
949618831627 DRIVE GEAR PAIR G12 188316+292727
292819-A PROTECTION PLATE GP300S
295247-A PROTECTION PLATE G12
295247-B PROTECTION PLATE G12
MM0202186 COVER CASTING MATERIAL: EN 1563: EN-GJS-
MM0202187 COVER CASTING MATERIAL: EN 1563: EN-GJS-
MM0209387 V-BELT SPC 2550MM
MM0214322 HYDRAULIC PUMP AZPF-10-014RHO30MB
MM0216093 SUB-FRAME GP300 / GP300S
MM0222708 V-BELT PULLEY 450X8 SPC-TL(5050)
MM0224259 PLATE
MM0224945 COUNTERSHAFT ASSEMBLY GP300/GP300S
MM0226633 PLATE WELDING GP-LUB UNIT
MM0230333 TAPERED SLEEVE 4030X100
MM0242240 MANTLE C/EC
MM0242241 CONCAVE EC
MM0251206 HYDR HOSE 90JF-12/EN857-2SC-12/JF-16/L80
MM0259738 MAIN SHAFT GP300
MM0259894 HEAD GP300
MM0262457 MAIN SHAFT ASSY GP300 SPARE PART ASSEMBL
MM0266967 ECCENTRIC BUSHING GP300 25/32/40
MM0267450 ECCENTRIC SHAFT GP300
MM0269407 BRNG GP300/S
MM0301048 MAIN SHAFT ASSY GP300
MM0304737 LOW FRAME GP300/S
MM0358252 TRMNL PLUG VSTI1/8EDCF
N02152934 HYDRAULIC PUMP P257086KVZA20-32
N02154096 OIL COOLER T 1626.065.X009
N02154758 BLADE 8400.569.0630
N02445981 RETURN FILTER MRH 150 MS1 DB 90 3 XX
N05222814 MTR PROTECTIVE CIRCUIT BREAKER GV2-ME07
N05428749 SQUIRR CAGE MOTOR K21R 112M4 4KW/1500 B
N11896339 MAIN SHAFT ASSY G12 FINE VARAOSAVERSIO
N11905094 CONCAVE MF/C
N11920192 MANTLE MF/M
N11920194 CONCAVE MF/C LS
N11920195 CONCAVE M
N11920196 MANTLE C/EC
N11920197 CONCAVE EC
