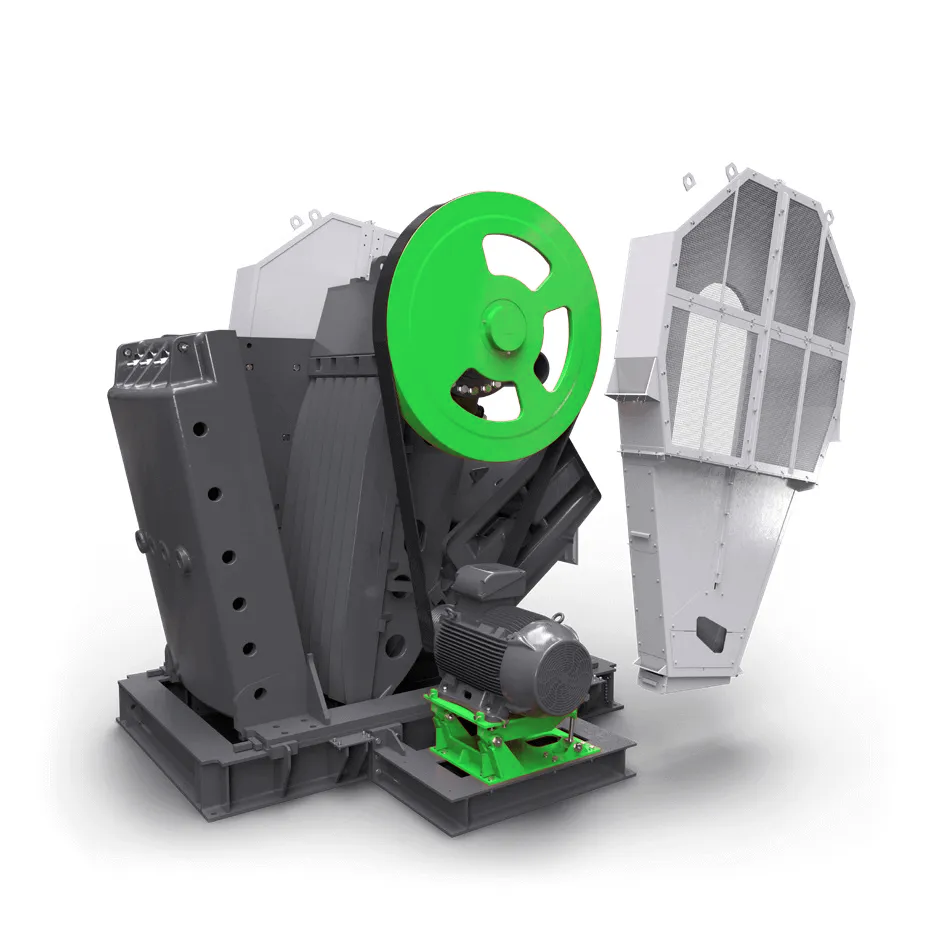

Sandvik CJ615-JM1511 Jaw Crusher Parts

Matec Solutions offer genuine replacement for Sandvik CJ/JM jaw crusher parts, and ensure the proper fit, form and function to reduce maintenance issues and increase longevity. Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

Jaw crushers parts are engineered for the toughest feed materials in the primary crushing stage. Matec Solutions supply different manganese jaw die profiles and thicknesses to achieve the perfect match for applications including quarrying, mining and aggregates.

Sandvik CJ615-JM1511 Jaw Crusher Parts List:

Parts No.	Items
402.4521-01	CHEEK PLATE UPPER 14MNCR
402.4522-01	CHEEK PLATE LOWER 14MNCR
402.4521-01	CHEEK PLATE UPPER 14MNCR
402.4522-01	CHEEK PLATE LOWER 14MNCR
840.0718-00	BOLT HEX ISO4014-M36X180-8.8-A3A
845.0221-00	NUT ISO4032-M36-8-TZN
847.0162-00	WASHER DIN125A-M36-HB200-UNPLTD
845.0227-00	LOCK NUT M36 ML6M
400.0736-001	WASHER FLEXIBLE
400.0737-001	PLATE, STEEL
840.0712-00	BOLT, HEX ISO4014-M36X120-8.8-A3A
845.1045-00	BOLT, HEX ISO4014-M36X150-8.8-A3A
402.4386-01	LOWER SUPPORT WEDGE, FIXED
840.1208-00	BOLT, HEX ISO4014-M48X240-8.8-A3A (with shim plate)
840.1117-00	BOLT, HEX ISO4014-M48X180-8.8-A3A (w/o shim plate)
845.0274-00	NUT, SELF-LOCKING ISO7040-M48-8-A3A
847.0026-00	WASHER BRB 6X50X85
400.0490-004	JAW PLATE F 1P ST 22MNCR
400.0490-001	JAW PLATE F 1P ST 14MNCR
400.0491-004	JAW PLATE M 1P ST 22MNCR
400.0491-001	JAW PLATE M 1P ST 14MNCR
400.0488-004	JAW PLATE M 1P CC 22MNCR
400.0488-002	JAW PLATE M 1P CC 18MNCR
400.0488-001	JAW PLATE M 1P CC 14MNCR
400.0485-004	JAW PLATE F 1P CC 22MNCR
400.0485-002	JAW PLATE F 1P CC 18MNCR
400.0485-001	JAW PLATE F 1P CC 14MNCR
400.0434-001	JAW PLATE F+M HD 14MNCR
400.0434-002	JAW PLATE F+M HD 18MNCR
400.0434-004	JAW PLATE F+M HD 22MNCR
400.0435-001	JAW PLATE F+M MIDDLE HD 14MNCR
400.0435-002	JAW PLATE F+M MIDDLE HD 18MNCR
400.0435-004	JAW PLATE F+M MIDDLE HD 22MNCR
402.4408-01	UPPER TIGHTENING WEDGE FIXED T65 14MNCR
402.5793-01	UPPER TIGHTENING WEDGE FIXED T15 14MNCR
650.0313-01	SCREW M48 X 420
845.0343-00	NUT HEX ISO4032-M48-8-TZN
847.0026-00	WASHER BRB 6X50X85
402.3915-06	WASHER 190x53x10 SS1312
650.0235-01	WASHER QUALITY 152 160/52x50
402.4505-01	PROTECTION PLATE FIXED
402.4506-00	SHIM 50 MM
840.0696-00	BOLT, HEXAGONAL ISO4014-M30X140-8.8-UNPLTD
847.0125-00	WASHER, PLAIN ISO7089-30-200HV-A3A
845.0284-00	LOCK NUT M6MN M30 8 DIN985
402.4503-01	PROTECTION PLATE MOVABLE
402.4386-01	LOWER SUPPORT WEDGE, MOVABLE
840.1209-00	BOLT, HEXAGONAL ISO4014-M48X320-8.8-UNPLTD
845.0274-00	NUT, SELF-LOCKING ISO7040-M48-8-A3A
847.0026-00	WASHER BRB 6X50X85
402.2005-01	UPPER TIGHTENING WEDGE MOVABLE 14MNCR
650.0314-97	SCREW M48X1115
845.0343-00	NUT HEX ISO4032-M48-8-TZN
847.0026-00	WASHER BRB 6X50X85
402.3915-06	WASHER 190x53x10 SS1312
650.0235-01	WASHER QUALITY 152 160/52x50
402.4500-00	DEFLECTOR PLATE 14MNCR
402.4508-01	TOGGLE SEAT HOLDER
402.4507-01	TOGGLE SEAT UPPER
402.4352-01	TOGGLE SEAT LOWER
400.4606-01	TOGGLE PLATE 915 MM (STD)
400.4605-01	TOGGLE PLATE 950 MM (STD)
840.0054-00	SCREW, HEXAGONAL ISO4017-M12X80-8.8-A3A
847.0147-00	PLAIN WASHER BRB 2X13/24
402.4510-00	SIDE BLOCK, LHD
402.4509-00	SIDE BLOCK, RHD
402.4472-00	PIN CLEVIS RETRACTION ROD
400.1329-901	RETURN ROD L=1830 (newer models)
402.4469-91	RETURN ROD l=1830 (older models)
400.0725-001	PRESSURE SPRING
