Metso Gyratory Crusher Parts

Metso Gyratory Crusher Parts

Product Item:006


  • Product Detail
  • FAQs

Matec Solutions supply various alloys, designs and sectioned mantles to achieve the best cost per produced ton, depending on the application and the wear rate. It is genuine replacement for Metso Superior Gyratory Crusher Parts.

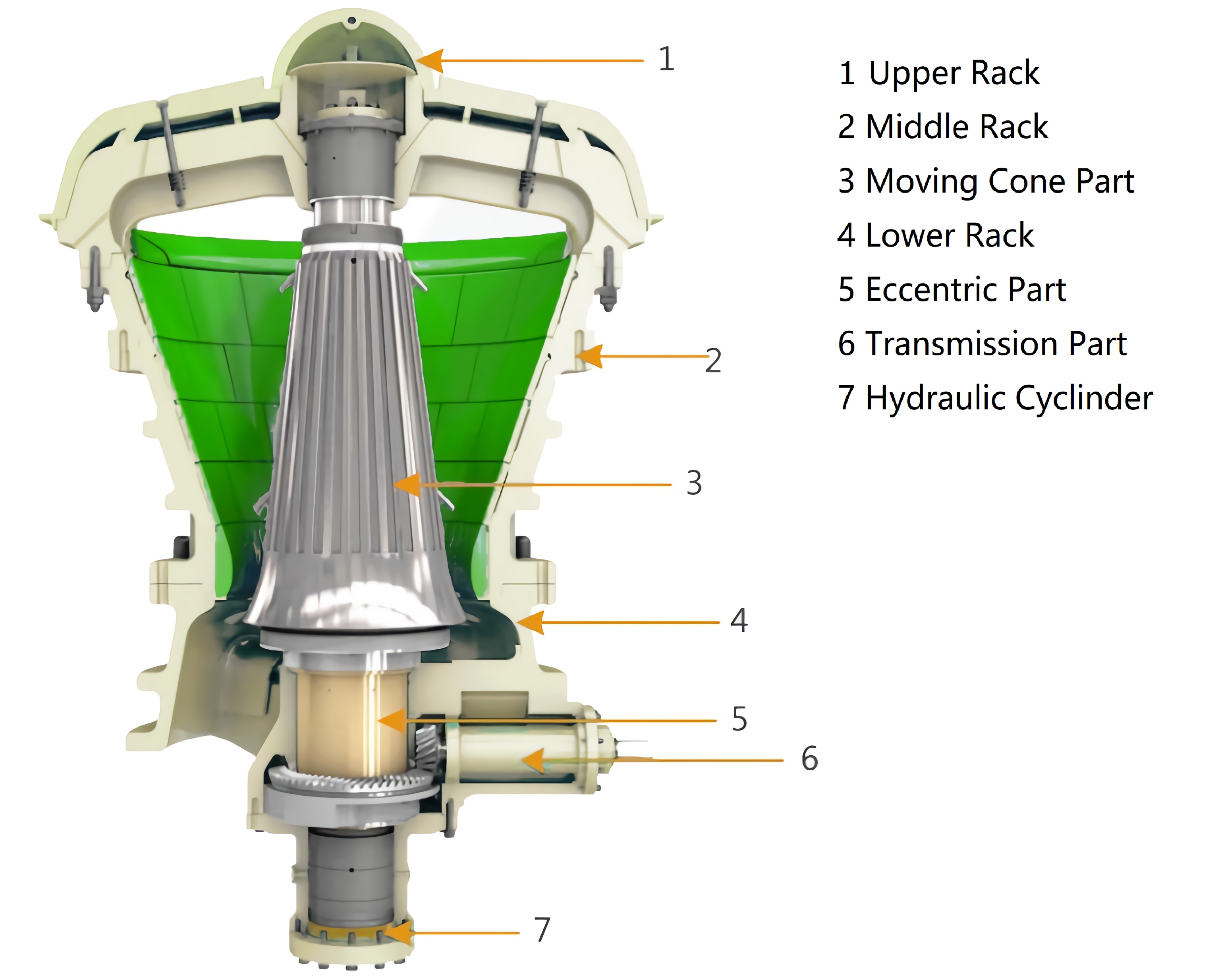

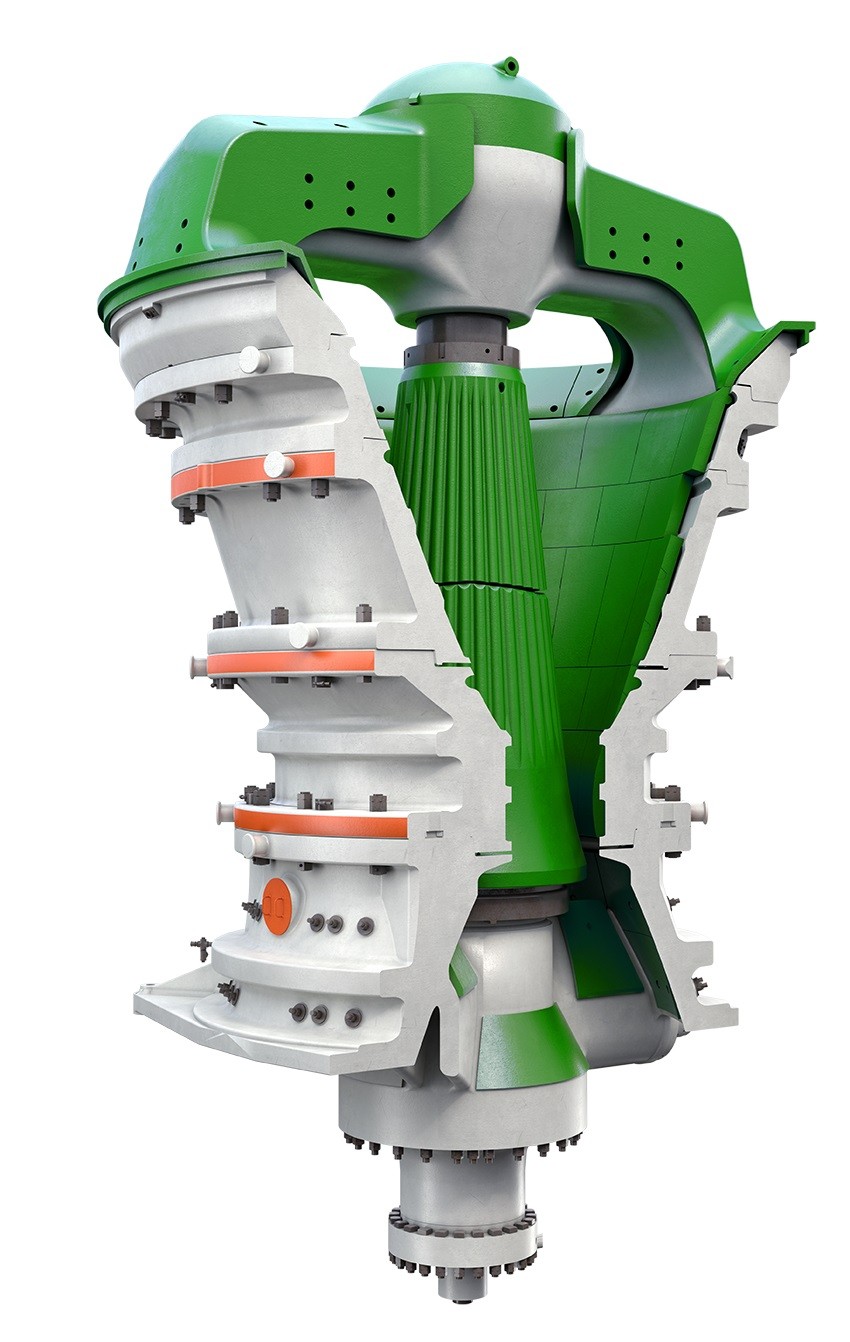

The SUPERIOR gyratory crusher is a compressive style crusher for primary-stage applications. Its steep crushing chamber and long crushing surfaces provide exceptionally high capacity and long liner life. It consists of a concave surface and a conical head; both surfaces are typically lined with manganese steel. The top of the shaft attached to the crushing cone is supported centrally in the bushings, and the bottom of the shaft is positioned in an eccentric bushing. The feed material is crushed between the fixed concave surface and a movable mantle. The bigger rock material is crushed against the mantle and the concave.


Concave Material Selection:
Upper Intake Liners:
• Manganese alloys
• Low-alloy steel, impact resistant
Chamber Mid Liners
• High manganese alloys
• Low-alloy steel, abrasion and impact resistant
Chamber Bottom Liners
• Low-alloy- steel, high abrasion and impact
resistant
• High-chrome special, maximum abrasion
resistance

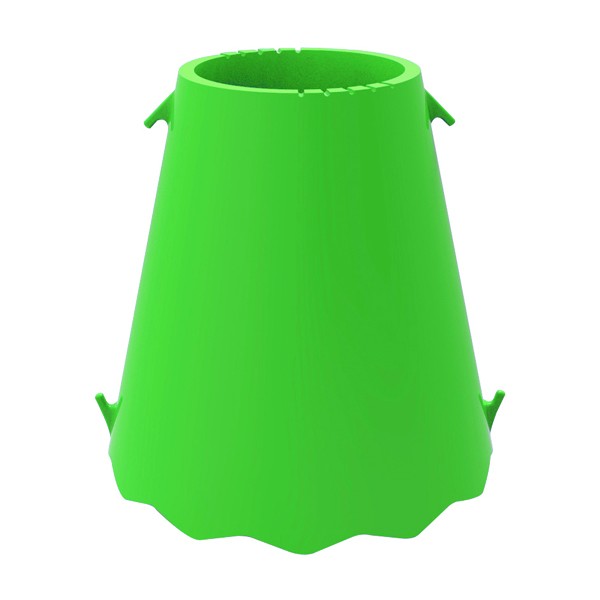

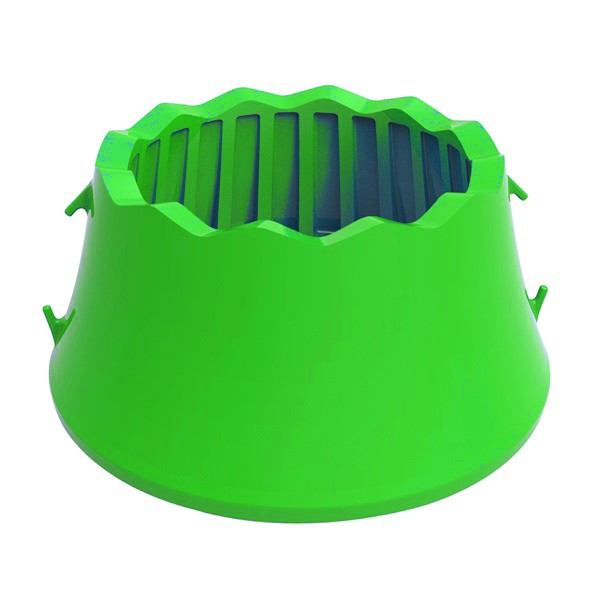

Mantle Material Selection:
standard material is the Mn13Cr2. To further maximize performance and wear life, special designs and high-alloy options are also available.

Features:

1, Dimension accuracy and Compatibility is guaranteed;
2, Customized dimension and material service is available;
3, Reliable performance is assured by good quality;
4, Superior wear resistance property optimized for longer service life.

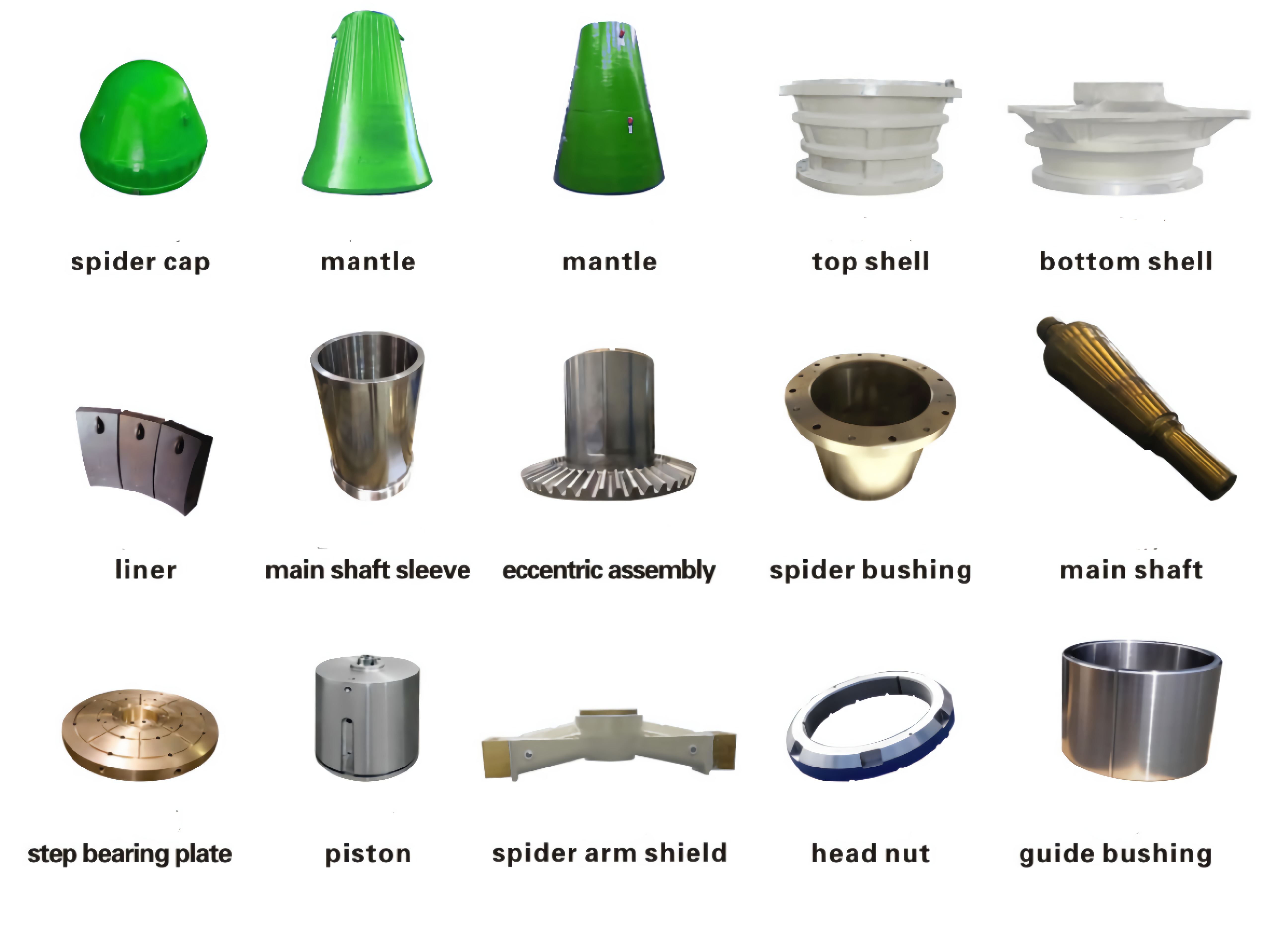

Metso Superior Gyratory Crusher Parts:
Superior 42-65, Superior 50-65, Superior 62-75.
