Metso GP200 Cone Crusher Parts

Metso GP200 Cone Crusher Parts

Product Item:54


  • Product Detail
  • FAQs

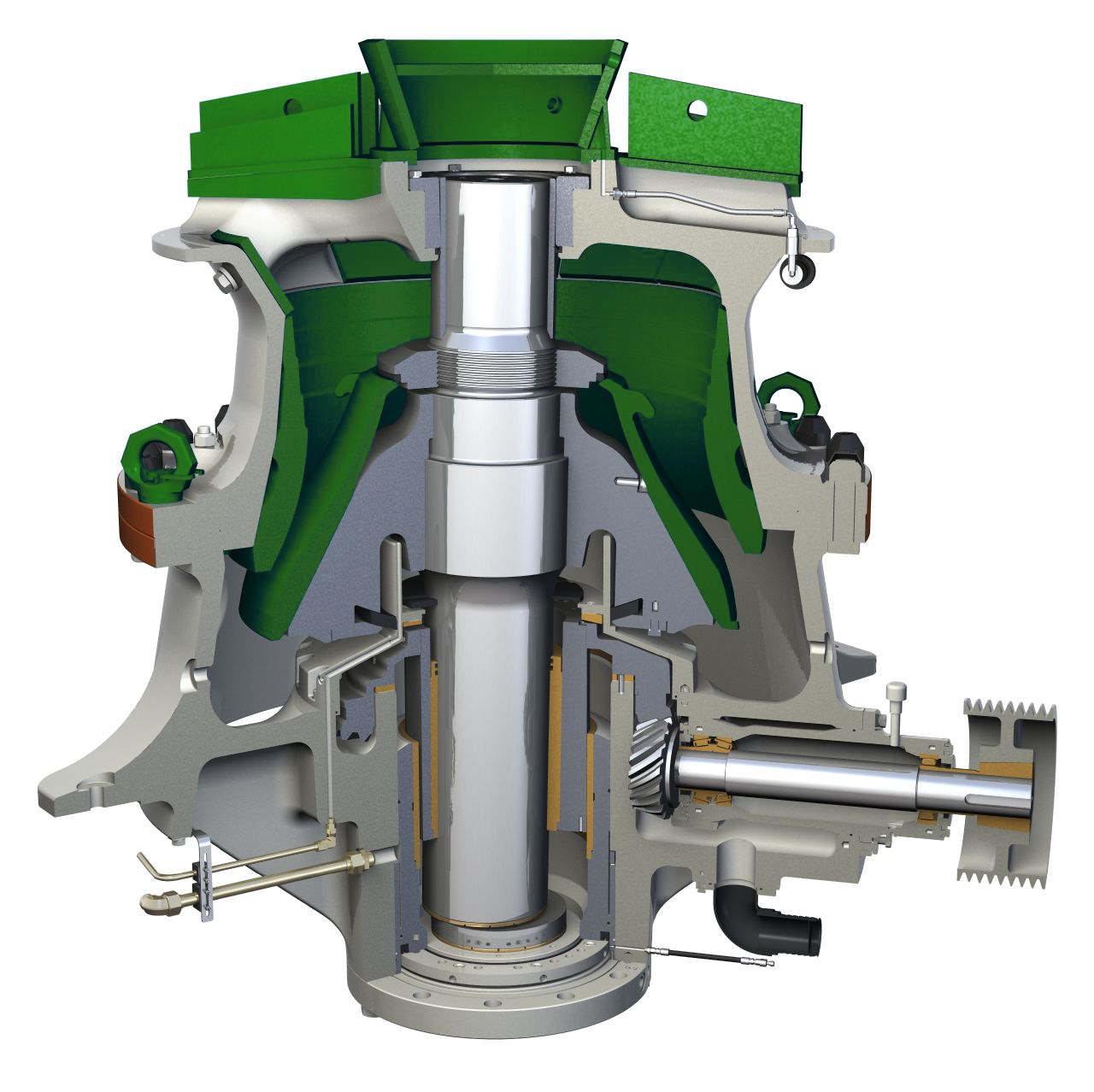

Matec Solutions is a professional supplier of compatible crusher spare parts to suit Metso GP cone crushers. We supply the genuine replacement parts to the original equipment. The Nordberg GP cone crusher is a compressive crusher in which feed material is crushed between a fixed bowl liner and a moveable mantle.

Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

GP200 Metso Crusher Parts List:

Part Number Description
576159 SHIM PLATES
583089 STRAINER GP-LUB UNIT
583099 HYDR POWER UNIT GP-LUB UNIT
583102 TEMP SENSOR GP-LUB UNIT
908921 BRNG GP200/S
909064 O-RING GP200/200S
909065 O-RING GP200/200S
909066 O-RING GP200/200S
909067 O-RING GP200/200S
909070 O-RING GP200/200S
912389 COVERING G3310
932594 PROTECTION BUSHING
932867 NUT NUT Tr270x12-8H
932880 PIPE
932886 PROTECTION PLATE
932952 SLIDE RING
932953 SEAL
932975 SPLASH GRD GP200, POLYAMID PA6
933335 SPACER RING
933615 ECCENTRIC BUSHING GP200 18/25
933638 TOP BRNG GP200 18/25
934265 CONCAVE PROTECTION GP200 F
935879 PRESSURE SEALING
941535 THRUST BRNG GP200S
942951 FRAME BUSHING
942969 O-RING GP200/200S
944415 LOW FRAME GP200/S
945072 CNTRSHFT ASSY GP200/S
951756 HOSE
7001624006 WASHER L-6-ZIN-NFE27-611
7002046007 ELBOW ISO49-A4-1 1/4-ZN-A
7002415053 ADAPTER GG106-NP20-24
7002422120 EQUAL TEE G203102-20-20S
7002480756 THROTTLE STC12/OD-21-01-03-05
404107470030 BOLT HEX ISO4014-M36X170-8.8-UNPLTD
704404205200 CLAMP DIN3017-SA77-95-W1
705501260605 V-BELT SET ISO4184-8XSPC 2800
706300240300 GUIDING RING PO-55-25150-5400-A
706300910002 PISTON SEAL UN540X500X20 PU 90 SH
949690808328 DRIVE GEAR PAIR G3310 908083 JA 908085
MM0215905 SHAFT SEAL DIN3760-AS115X140X12-FKM
MM0223580 POWER SOURCE QUINT-PS-3X400-500AC/24DC/
MM0272762 ARM GRD GP200/S
MM0301491 BRNG GP200/GP200S
MM0315432 CNTRSHFT ASSY GP200/S
MM0524454 BRNG GP200/S
MM0531018 BRNG GP200/S
N01521002 CAP SCRW HEXSCKTHD DIN7984-M10X25-8.8-UN
N02125056 THERMOSTAT KPS 79 060L312166
N02125794 HTR 59484 6000W/480V 2W/CM2
N02125883 MSR ADAPTER 1-906-29-11-010, R1/4
N02149024 COUPLING HOUSING TH2-101A
N02152933 HYDR PUMP P197086KAZA20-32
N02152936 HYDR PUMP AP200/11-D-218
N02154075 COOLER T6.1626.063.X009
N02154752 PROTECTION PIPE OD15X75MM, 060L3262
N02445012 MANOMETER 6308 PBL 060
N02445013 MANOMETER 6305 RL 025
N02445014 MANOMETER VALVE HB1-PA
N02445071 PRESSURE RELIEF VALVE VSP-150 04.12.04-0
N02445174 CARTRIDGE VALVE OD.15.05.21-37-00 VEI-8A
N02445183 CRTRDG VALVE VU-C-12 OD.42.01.00.05-01
N02445187 VALVE BLOCK OFF15912NE0000
N02445315 SEAL USIT-4 R1/4″
N02445792 FILTER CRTRDG RH 150 MS 1
N02445793 FILTER CRTRDG CH 302 FV 1 1
N02445810 CLOGGING IND IND.008.0075.2 2BAR 30C
N02445980 FILTER ASSY SPM302FV1CB503XX
N02445983 FILTER ELEMENT CS 10 AN
N02480709 COIL OD.02.11-01-30-OC, 24VDC
N02480817 PRESSURE SW 060-3104, KPS33, 0.6BAR / 0
N02701132 O-RING 69.85X3.53-NBR70, 80641195000
N03460525 COUPLING AK2-PP-65 / K-65 / AK28-MP-65
N03460609 SPACER K-90
N05227008 ELECTRIC PIN, MALE MVSTBR2,5/4-ST-5,08
N05256691 CNNCTN ITEM GV2-AF3
N05256975 FUSE BASE ST 4-FSI/C, 3036372
N05428751 SQUIRR CAGE MOTOR K21R 100L4 2.2KW/1500
N05428752 SQUIRR CAGE MOTOR K21R 80G8-4L 0.18/0.7
N11933947 MANTLE F/M/EC
N11933948 CONCAVE SPECIAL F
N11933949 CONCAVE M
N11934264 INTERMEDIATE CONE GP200 F & M, 20MN5
N11942003 MANTLE EF
N11942004 CONCAVE EF
N11944214 CONCAVE F
N11944215 CONCAVE EC
N11951220 CONCAVE MC
N44450224 HYDR HOSE 5723-20-16/SAE100R2T-16/5705-1
N44460458 HYDR HOSE JF-12/EN857-2SC-12/45JF-12/L88
N44460461 HYDR HOSE JF-20/EN853-1SN-20/45JF-20/L45
N44460464 HYDR HOSE JF-20/EN853-1SN-20/JF-20/L720
N44460963 HOSE JF-06/EN857-2SC-04/JF-06/L350
N86101539 PIPE
N86101540 PIPE
