Metso C200 Jaw Crusher Parts

Metso C200 Jaw Crusher Parts

Product Item:72


  • Product Detail
  • FAQs

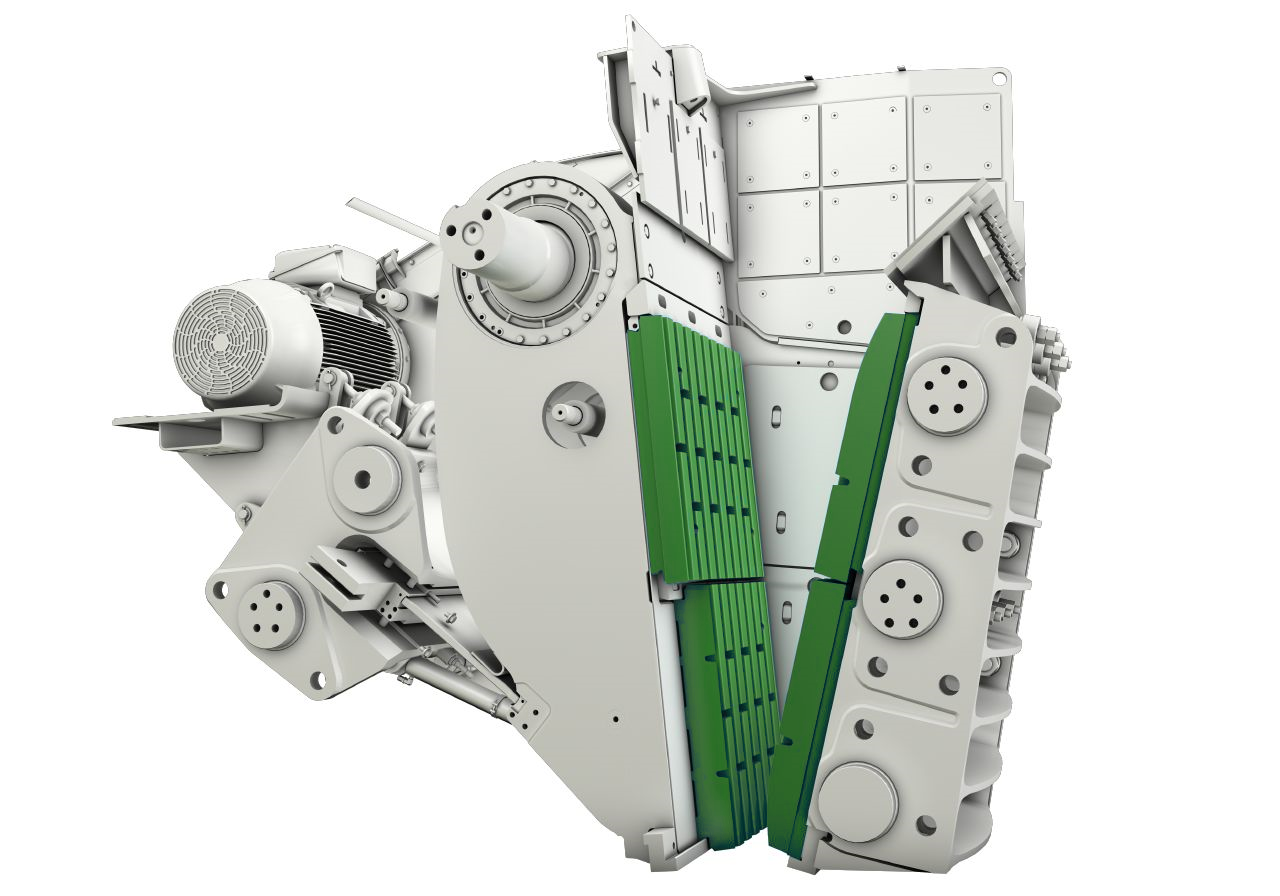

We offer genuine replacement for Metso C series jaw crusher parts, and ensure the proper fit, form and function to reduce maintenance issues and increase longevity. The Metso C series jaw crusher is a compression type crusher. Feed material is crushed between fixed and movable jaw dies, engineered for the toughest feed materials in the primary crushing stage.

Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

Matec Solutions supply different manganese jaw die profiles and thicknesses to achieve the perfect match for applications including quarrying, mining and aggregates.


Metso C200 jaw crusher parts list:

Part Number Description Part Number Description
585042 LIFTING LINK JAW PLATE (C200) MM0282131 PRSSR ACCUMULATOR SB330-10A1/112U-330B
917651 LUG C200 MM0343105 LIFTING TOOL C200
918236 CYL ASSY C200B N01530425 BOLT HEX ISO4014-M20X110-8.8-A3A
7001532466 BOLT HEX ISO4014-M24X110-10.9-UNPLTD N01532885 BOLT HEX ISO4014-M42X140-10.9-UNPLTD
703402104980 O-RING SMS1586-44.20X3.00-NBR90 N01532887 BOLT, HEXAGONAL ISO4014-M42X150-10.9-UN
704007530000 WASHER SPRING DIN127-A16-A3A N01532895 BOLT HEX ISO4014-M42X200-10.9-UNPLTD
704102158000 EYE BOLT ISO3266-M12-WLL 0.4T N01633006 WASHER LOCK DIN25201-M6
705600215000 WRENCH OPEN END ISO3318-46 N02445081 PRSSR REL VALVE CMP10.C3
705600222000 WRENCH OPEN END ISO3318-85 N02445082 PRSSR REL VALVE CMP30.C3
705600385000 WRENCH HIT BOX DIN7444-75 N02445195 CRTRDG VALVE CRP.02.NC.S
706306138000 PRESSURE GAUGE 213.53.63.200BAR LM G1/4 N02470549 PISTON SEAL PS1401250-T49V
MM0217710 HYDR CYL C200 N03222320 V-BELT ISO4184-SPC 10000
MM0247725 NUT HMV 96E N03729910 BRNG HOUSING SNL 524-620
MM0247728 NUT HMV 112E N05255829 ELCTRC SW M22-WK3/AK20
MM0265872 CHECK GAUGE C-JAW PLATES Ø70 MM HOLES N11917389 JAW, FIXED QUARRY 2P
N11917390 JAW MVBL QUARRY 2P
