Metso GP100 Cone Crusher Parts

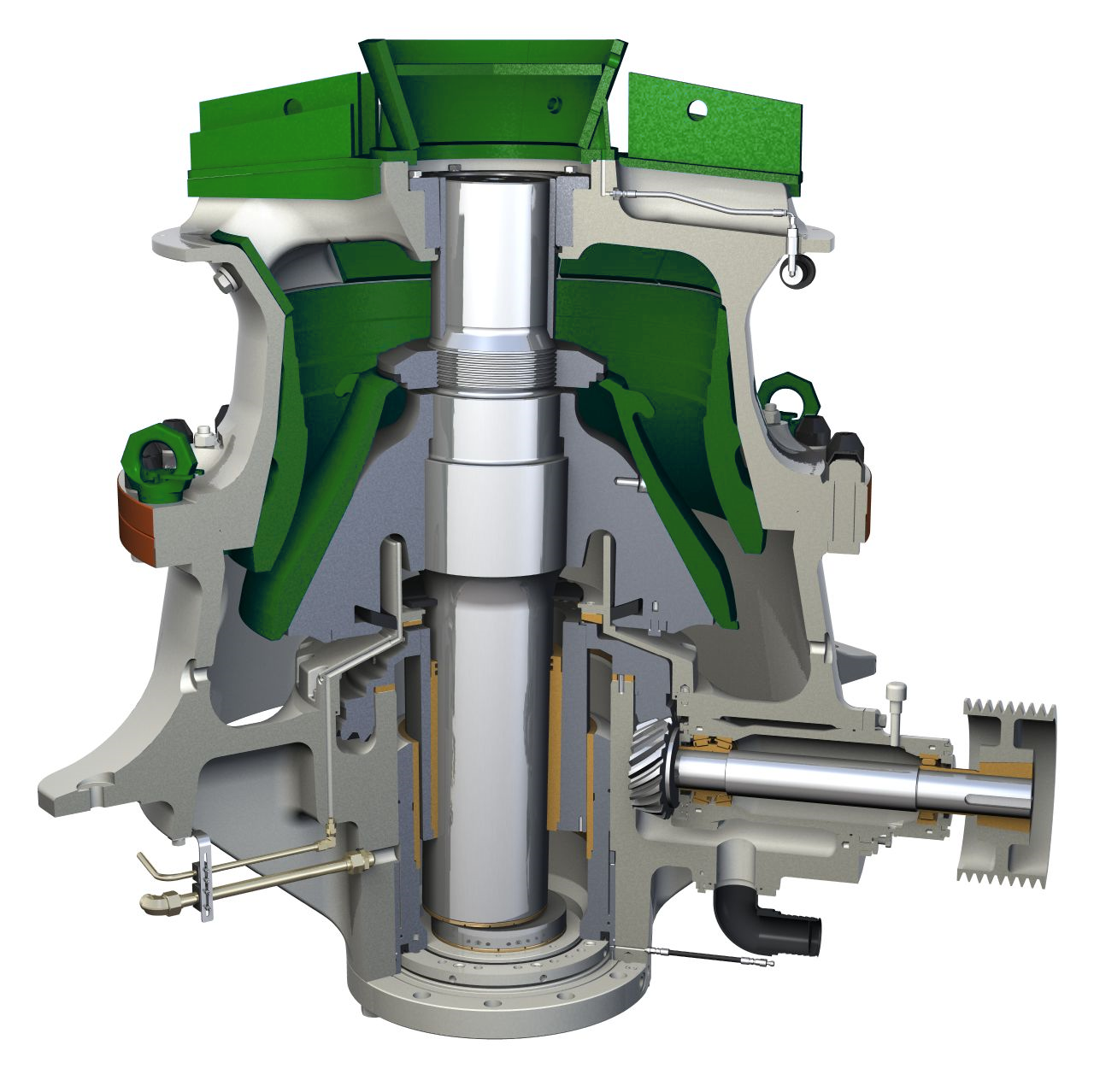

Matec Solutions is a professional supplier of compatible crusher spare parts to suit Metso GP cone crushers. We supply the genuine replacement parts to the original equipment. The Nordberg GP cone crusher is a compressive crusher in which feed material is crushed between a fixed bowl liner and a moveable mantle.

Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

GP100 Metso Crusher Parts List:

Part Number	Description
171551	BRNG BUSHING E20 G158
171564	BRNG BUSHING E25 G158
171565	BRNG BUSHING E16 G158
285143	HEAD GP100
285150	MAIN SHAFT GP100
285166	SLIDE RING GP100
285176	NUT TR240X12-8H RIGHT HANDED
285184	SLIP RING G158
285968	CONCAVE PROTECTION GP100EF, 285968
386960	COVER G158
386979	PROTECTION PLATE G158
416086	CHECK VALVE RHD-12 S G10,14
418312	PLATE RUBBER G800
418313	PLATE RUBBER G800
418460	SEAL G158 418460
418481	PROTECTION BUSHING G158
418501	SCREW M24X280-8.8 498501 G49
418919	BUSHING GP100/100S 110/85,2X27,5
497701	SPACER RING GP100EF
801503	HYDR HOSE 5772-20-10/SAE100R2T-10/57H4-
911915	PRESSURE SEALING GP100
912122	LUBRICAT&SET DEV 230V GP100/GP100S W/O
912544	PRESSURE ACCUMULATOR INST 10 L
916186	MAIN SHAFT ASSY GP100
916906	COVER GP11F/GP11M
917291	SHIM PLATE
919803	COVER G800 SRJ-919803
919807	PISTON BOTTOM G800SRJ 919807
919881	LOWER FRAME ASSEMBLY GP100
927182	FRAME UPR GP100
928604	BRACKET
928619	FRAME
928647	LEVER
933176	MOTOR SUPPORT ASSY GP100/GP100S
933743	MEASURING TOOL GP100 G49-G158
941233	SEAL GP100/GP100S
941532	THRUST BRNG GP100 & GP100S
946557	CYL BUSHING GP100
947611	MOTOR SUPPORT ASSEMBLY GP100/100S
952431	SLIP RING GP100
952763	ADAPTER PRESSURE SEALING – GP100/100S
403402105930	O-RING JISB2401-G150-149.30X5.70
403402106060	O-RING SMS1586-219.30X5.70-NBR90
404101573000	CIRCLIP DIN472-320X6
404103672400	CAP SCRW HEXSCKTHD ISO4762-M12X160-8.8-
404405693635	PARALLEL KEY DIN6885-AB32X18X65
404506378310	HOSE LOS5-2UU16X2800
404508341020	HOSE LOS5-4KK31,5X2300
405302055000	ROLLER BRNG NU 218 ECP
405501260430	V-BELT SET ISO4184-6XSPB 2500
405501260460	V-BELT SET ISO4184-6XSPB 3150
406202557365	TAPERED SLEEVE 3525X65, 029J0065
406202557385	TAPERED SLEEVE 3525X85, 029J0085
406203016993	HYDRAULIC PUMP P2C1613F1C5A
406203455500	CONNECTION 148801(PSS 20/16)
406302285800	SEAL 300X330X22 N300-102
406303279879	V-BELT PULLEY SPB 355/6, 11135506S
406303279919	V-BELT PULLEY 400X6SPB-TL(3525)
704002859970	PARALLEL PIN ISO2338-12M6X28-ST-UNPLTD
704209440000	CUP SPRING DIN2093-A63
704500230000	WASHER LOCK DIN7980-12-A3A
704505054600	HYDR HOSE LOS 5-1 AA 10X1050
704602303500	PLUG PLASTIC NA0204A
705302980000	ROLLER BRNG 30218 J2
705303970000	ROCKER BRNG GE 220 ES-2RS/C3
706201202100	COUPLING GE191 ER.69019
706203021400	SEAL P9097000111
706203455000	0UBE NIPPLE 765801(PUS20R)
706303279830	V-BELT PULLEY 280X5SPC-TL(3525)
707301583670	FLOAT SW ALM2-MS-L160-SV L1=110NO
708801205000	GREASE RETINAX G
804401280000	CNNCTN DIN2353-DS 20-B-ST-GT
814317178300	CONCAVE MF
814317183600	CONCAVE F
814318865500	CONCAVE M
814328537700	CONCAVE C
814328537800	MANTLE F/MF/M/C
814329529300	CONCAVE EF
814390490400	MANTLE EF
949617144700	HEAD GP100S
949617145000	LOW FRAME GP100/GP100S
949617145100	CNTRSHFT ASSY GP100/S
949617145400	ECCENTRIC SHAFT G800-SERIES 171454
949628505000	MAIN SHAFT G258-SERIES 285050
949628505600	SETTING PISTON GP100/GP100S
949628505700	CNTRSHFT G800-SERIES 285057
949628505800	CASE G800-SERIES
949628505900	HUB GP100S
949628506200	FRAME BUSHING G800-SARJA 285062
949628506300	RING G800-SERIES 285063
949628506400	SUPPORT BUSHING G800-SARJA 285064
949631229100	MAIN SHAFT ASSY SPARE PART VERSION GP10
949638681800	SEAL 220/280X20 G800-SARJA 386818
949638682800	PRESSURE PLATE GP100 & GP100S
949638682930	DRIVE GEAR PAIR G800-SARJA 386829+38683
949638683200	BRNG HOUSING COVER G800-SERIAL 386832
949638684500	RING G800-SERIES 386845
949638685400	PROTECTION PLATE G800-SERIES 386854
949638685500	PROTECTION PLATE G800-SERIES 386855
949640519400	PUSHING PLATE G10-SERIES 405194
949641826900	BUSHING G800-SERIES 110/85X39 418269
949641827000	BUSHING G800-SERIES 110/85X27 418270
949641827300	GEAR RACK G800-SERIE 418273
949641828500	SPACER RING GP100F-C & GP100S; ST52-3
949641830000	PISTON GUIDE G800-SERIE 418300
949641830100	O-RING 693,3X5,7 NBR 70
949641830500	PIPE
949641830600	CHOKE G800-SERIES
949641830800	SCREW G800-SERIES 418308
949656323800	PROTECTION BUSHING G800-SARJA 563238
979650167300	SHIM SHEET 20X30X1
285502-A	PROTECTION PLATE G158
285502-B	PROTECTION PLATE G158
410862-B	EYE BOLT C80B, G158, G258
495606-A	CNTRL PLATE S=0,4MM G8
495606-B	CNTRL PLATE S=1,0MM G8
MM0209335	OIL HOSE 5000 MM
MM0218708	SHAFT SEAL DIN3760-AS110X140X12-FKM
MM0221023	HYDR PUMP MHP30A294*BEMP1030
MM0230953	O-RING OR2501700, 17.00X2.50, NBR90
MM0233747	SHAFT SEAL 402-2883-107
MM0242071	CONVERSION ADAPTER 04008000
MM0247042	DIRECTIONAL VALVE DTDA-MCN-223
MM0247048	COIL 770-223 (230VAC)
MM0250978	PUMP PLP10.2D0-81E1-LBB/BA-N-ELFS, 00372
MM0251855	PUMP
MM0253396	COOLER GP100/S & GP11
MM0263960	FRAME TMZ002
MM0309236	MANTLE F/MF/M/C OS
MM0314799	FEED HOPPER
MM0314800	FEED HOPPER ASSEMBLY GP100
MM0331592	ELCTRCL CABINET GP100/S 90KW
N02106121	HOSE FUEL-TEK, 2410BC063
N02123132	BALL VALVE 100020D R1/2″ 500 BAR
N02125229	FLOAT SW LM2CTA450
N02701020	O-RING OR2502000, 20.00X2.50
N11810031	UPR FRAME CASTING GP100 EN 10293:1997 G2
N11950658	CONCAVE C
ZX11144277	LOW FRAME GP100/GP100S
ZX11192269	HOSE LOS5-4KK31,5X4500
ZX11192270	HOSE LOS5-2UU16X4500
ZX11192531	HOSE LOS5-1AA25X7500
ZX11192532	HOSE LOS5-4KU31.5X7500
ZX11202686	AMPMETER DP3-A300/5
ZX11214688	MOTOR Y2-280M-4/90KW/380V,HIGH ALTITUDE
ZX93000045	ELECTRICAL CABINET 90KW
