Metso MP1250 Cone Crusher Parts

Metso MP1250 Cone Crusher Parts

Product Item:52


  • Product Detail
  • FAQs

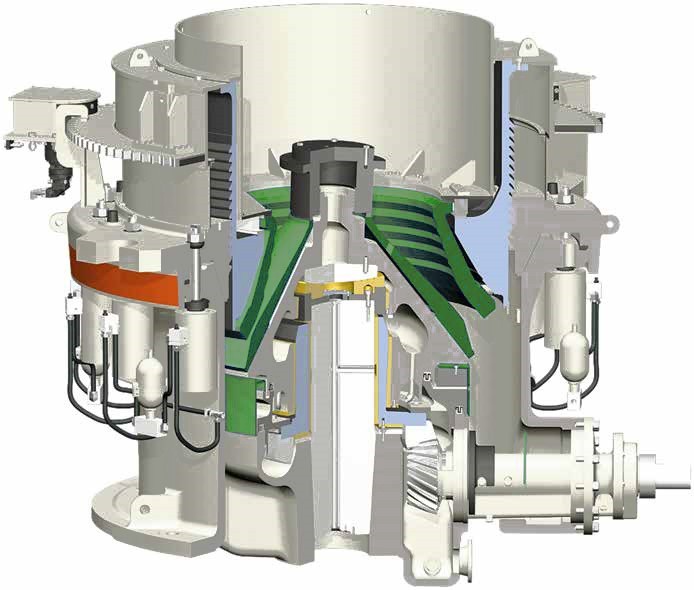

Matec Solutions is a professional supplier of compatible crusher spare parts to suit Metso MP cone crushers. We supply the genuine replacement parts to the original equipment. The Nordberg MP cone crusher is a compressive crusher in which feed material is crushed between a fixed bowl liner and a moveable mantle.

Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

MP1250 Metso Crusher Parts List:



Part Number Description
MM0379539 MANTLE UPPER
MM0381050 MANTLE
1048315475 CONCAVE RING
MM0367200 BURNING RING
MM0371478 Locking nut sub-assembly
MM0373435 Feed plate assembly
MM0367404 HEAD ASSEMBLY
MM0347687 Main Frame Assembly
MM0346164 Main Frame Sub Assembly
MM0345191 Countershaft Box Assembly
1022070708 Countershaft Box Bushing
1022075736 Eccentric Bushing
1022148833 Head Bushing Lower
1038069780 Arm Guard Liners
1048315475 Bowl Liner
1048519630 Mainframe Liner
1051490910 Spherical Nut
1056839408 Lock Plate
1057605258 Thrust Bearing Upper
1057605260 Thrust Bearing Lower
1094300295 Clamping Cylinder
MM0311407 Tramp Release Cylinder Assembly
MM0375614 Locking Nut Assembly
MM0379539 Mantle Upper
MM0381050 Mantle Lower
MM0382550 Key Bushing
5444-0240 Main frame pin
6187-9701 Clamp ring
6863-7750 Countershaft
4537-8302 Countershaft Box
3806-9700 Guard
6280-7656 Oil flinger
6359-4290 Flinger housing
3806-7965 Guard
2281-9301 Adjustment cap
4418-0221 Hopper
