Matec Solutions is specialized in manufacturing of crusher wear parts which are 100% compatible with Sandvik CH/CS Cone Crusher Spare Parts. Reliable cone crusher spare parts enable stable production without unexpected downtime.
Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

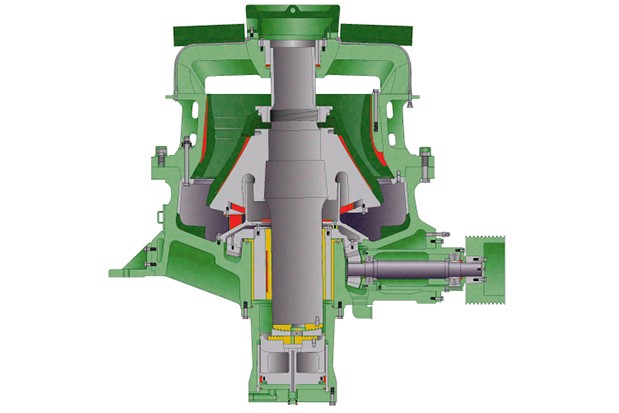

Sandvik CH430-CS430 Cone Crusher Parts List:
| Model Part No Description |
| CH430/CS430 442.7984 Arm shield |
| CH430/CS430 442.7976 Spider cap |
| CH430/CS430 873.0833 o-ring seal |
| CH430/CS430 442.6473 Spider bushing |
| CH430/CS430 442.6470 Oil seal ring |
| CH430/CS430 442.7913 Main shaft sleeve |
| CH430/CS430 442.7912 Head nut |
| CH430/CS430 442.7911 Burn ring |
| CH430/CS430 442.7918 Inner head nut |
| CH430/CS430 442.8245 Filler ring C |
| CH430/CS430 442.8008 Filler ring M |
| CH430/CS430 442.8009 Ring |
| CH430/CS430 442.8010 Seal ring |
| CH430/CS430 442.8249 Concave |
| CH430/CS430 442.8248 Concave |
| CH430/CS430 442.8247 Concave |
| CH430/CS430 442.8246 Concave |
| CH430/CS430 442.8251 Concave |
| CH430/CS430 442.8630 Concave |
| CH430/CS430 452.1216 Concave |
| CH430/CS430 442.7988 Mantle |
| CH430/CS430 442.7989 Mantle |
| CH430/CS430 452.1502 Mantle |
| CH430/CS430 442.9759 Mantle |
| CH430/CS430 442.8001 Screw |
| CH430/CS430 845.0216 Lock nut M24 |
| CH430/CS430 442.7996 Sleeve |
| CH430/CS430 442.7997 Washer |
| CH430/CS430 863.0032 Disc spring |
| CH430/CS430 442.8017 Dust seal ring |
| CH430/CS430 442.8020 Retaining ring |
| CH430/CS430 442.8021 Retainer |
| CH430/CS430 442.8022 Scraper |
| CH430/CS430 442.7915 Liner-Pin shaft arm |
| CH430/CS430 442.7914 Liner-Narrow arm |
| CH430/CS430 442.8864 Wearing plate |
| CH430/CS430 442.8865 Wearing plate |
| CH430/CS430 442.8866 Wearing plate |
| CH430/CS430 442.8867 Wearing plate |
| CH430/CS430 442.8868 Wearing plate |
| CH430/CS430 442.8869 Wearing plate |
| CH430/CS430 442.7895 Main shaft step |
| CH430/CS430 442.7894 Step washer |
| CH430/CS430 442.7893 Piston wearing plate |
