Metso GP500S Cone Crusher Parts

Metso GP500S Cone Crusher Parts

Product Item:61


  • Product Detail
  • FAQs

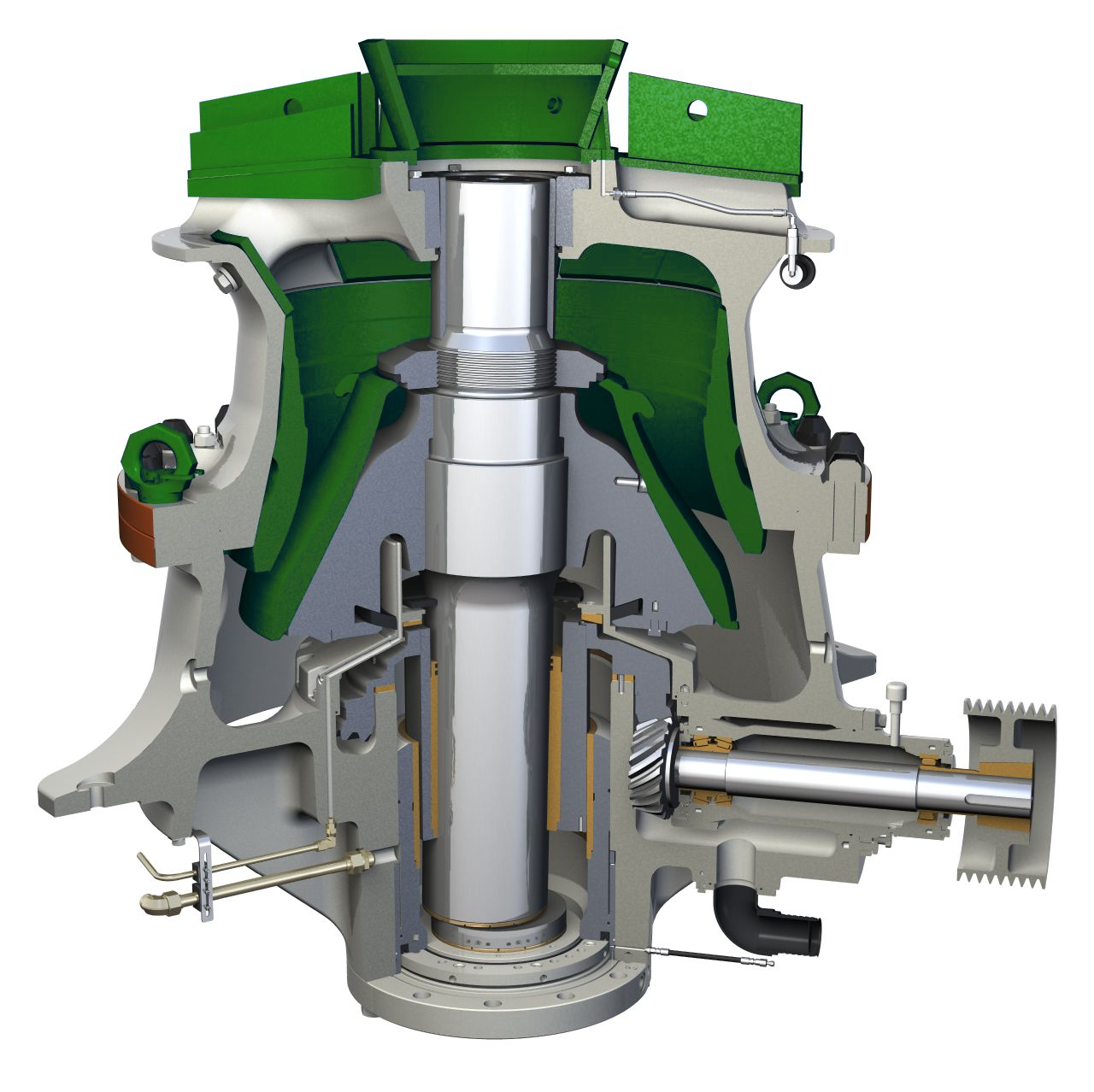

Matec Solutions is a professional supplier of compatible crusher spare parts to suit Metso GP cone crushers. We supply the genuine replacement parts to the original equipment. The Nordberg GP cone crusher is a compressive crusher in which feed material is crushed between a fixed bowl liner and a moveable mantle.

Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.

GP500S Metso Crusher Parts List:

Part Number Description
189495 FRAME UPR GP500S
189534 ECCENTRIC BUSHING GP500S E18/E25/E32/E4
189611 PROTECTION PLATE G5015; XT710
189612 PROTECTION PLATE G5015 UPPER; XT710
295460 TOP BRNG 18/25/32/40
295497 NUT TR400X12-8H LEFT HAND GP500S
295624 PROTECTION PLATE G5015
341571 COVER GP500S
341573 PROTECTION BUSHING G5015
447572 SEAL RING G5015 447572
447582 SEAL G5015 447582
581211 FRAME BUSHING
581710 LOW FRAME GP500S
582536 SUPPORT HOLDER
909151 COUNTERSHAFT ASSEMBLY G5015
916198 FRAME ASSEMBLY, UPPER G5015
939756 ECCENTRIC SHAFT
7001530426 SCREW HEX ISO4017-M20X90-8.8-A3A
7004205209 VIBRATION DAMPER SAW 300-60° IRH, 81449
704100027332 HAMMER SCREW DIN261-M36X160-4.6 ER.4716
814329548400 MANTLE GP500S, S1000
814390882100 CONCAVE GP500S C 0861-512
814390882200 CONCAVE, UPPER GP500S C 0861-512
949640456004 SCREW M36X450 404560-D
MM0209314 PIPE 42X3 K=175
MM0211573 SUB-FRAME ASSEMBLY SUB-FRAME ASSY
MM0214477 CONTROL CABIN 315KW,GP500S
MM0239996 ECCENTRIC SHAFT GP500S ECCENTRIC SHAFT
MM0252493 BLOWER HP-229,3-PH,2-POLE, 230/400V 50H
MM0252559 COMPRESSOR UNIT G-SERIES
N01532913 BOLT HEX ISO4014-M48X240-10.9-UNPLTD
N02125015 THERMOMETER T3B507002 TB63 100G 0-120C
N02152939 HYDR PUMP P257C386KVZA22-32
N05428758 SQUIRREL CAGE MOTOR K21R 100LX8-4L 0.65/
N11941326 MANTLE EC
N11941327 MANTLE C
N11941328 CONCAVE GP500S C (&EC) 0861-512
N11947962 CONCAVE UPPER C
N11947963 CONCAVE UPPER EC
