Metallic Mill Liners

Metallic Mill Liners

Product Item:029

  • Product Detail
  • FAQs

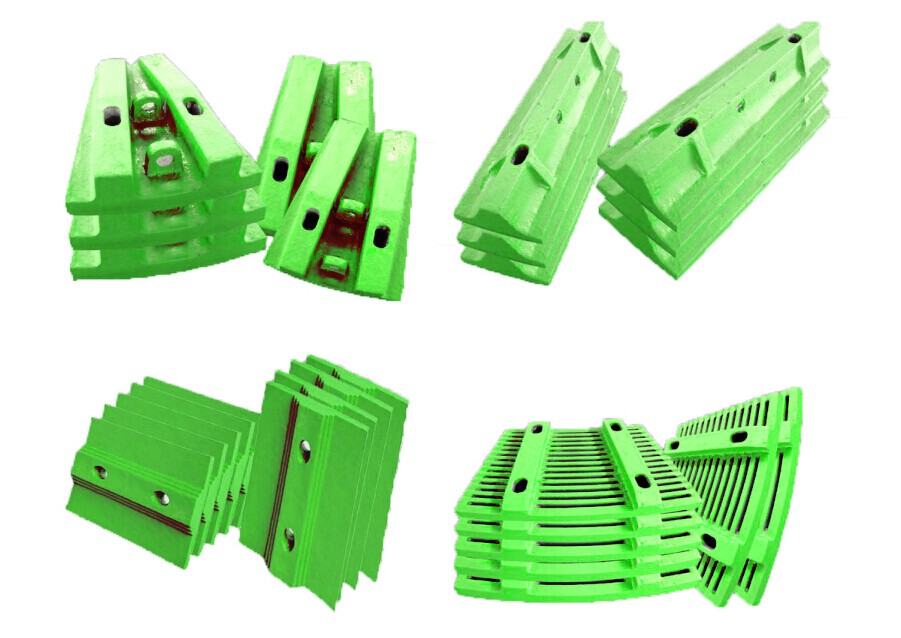

Metallic mill liners are produced at our own foundries. Our Cr-Mo steel and high-chromium white irons are specifically developed for mill lining applications and are carefully selected based on the operating conditions of each mill. Liners are designed for maximum performance and minimized replacement time.

We apply strict quality assurance programs in every phase of research, development, design and production. This ensures high, uniform quality for the entire supply. High quality standards also involve precise dimensions and close tolerances, so that every mill liner from Matec Solutions has a perfect fit.

AG/SAG/Ball Mill Grinding for mineral processing, cement industry and power plant.
High wear and impact resistance;
High strength and high toughness;
Complete compatibility and long service life.

The material of mill liners are low C Cr-Mo Alloy steel, high C Cr-Mo Alloy steel, High Manganese steel and Super High Manganese steel, depending on the specific working condition .

Item Chemical Composition(%)
C Si Mn Cr Mo Cu P S
Medium Cr-Mo Alloyed Liner 0.4-0.8 ≤1.2 0.6-1.5 4.0-6.0 0.3-1 0.3-0.8 ≤0.04 ≤0.06
Low Cr-Mo Alloyed Liner 0.3-0.6 ≤1.2 0.5-1.2 1.2-2.5 0.3-1 0.3-0.8 ≤0.04 ≤0.06
High Manganese Liner 0.9-1.5 0.3-1.0 11.0-14.0 0-2.5 0-0.5 ≤0.05 ≤0.06 ≤0.06
Super High Manganese Liner 1.0-1.5 0.3-1.0 16.0-19.0 0-2.5 0-0.5 ≤0.05 ≤0.06 ≤0.06
