Matec Solutions Co.,Ltd.

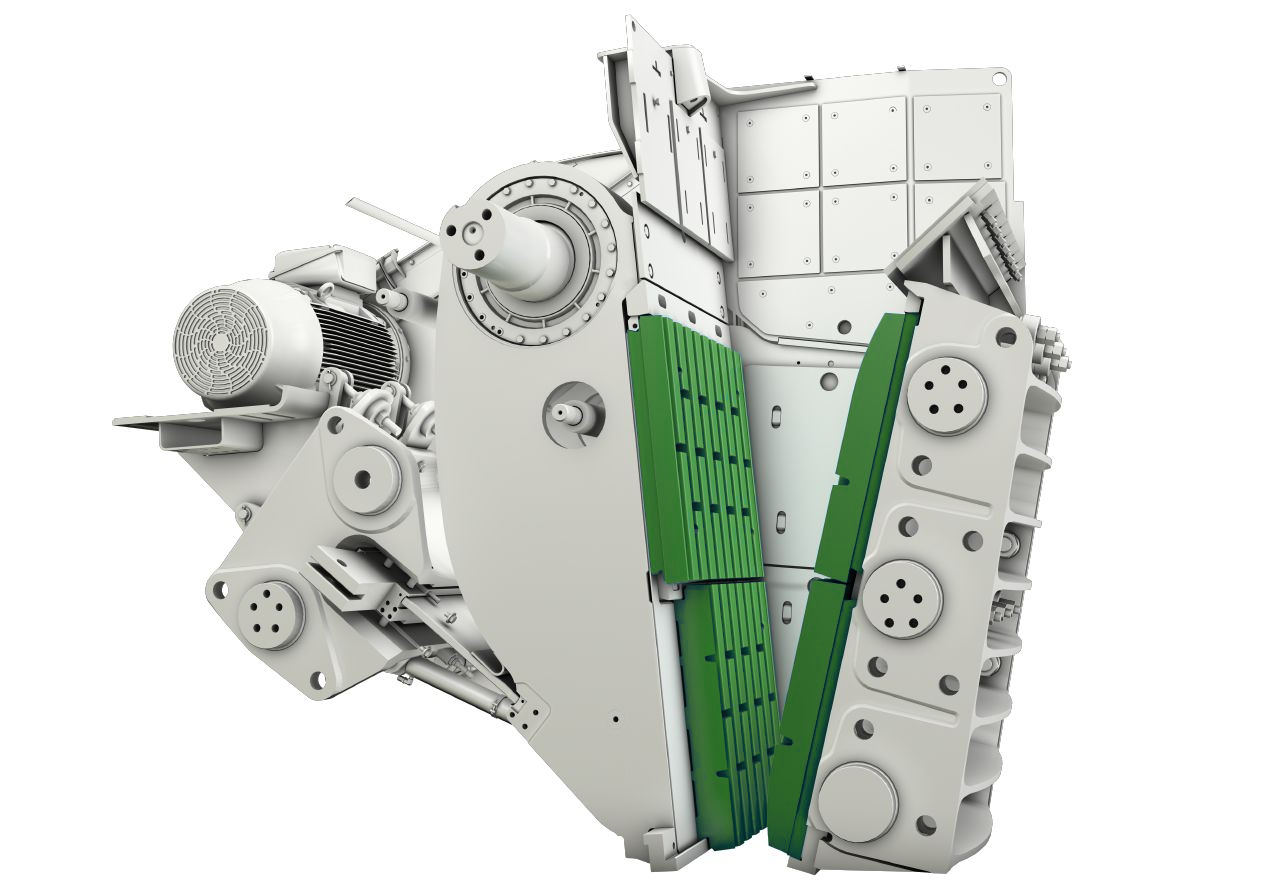

We offer genuine replacement for Metso C series jaw crusher parts, and ensure the proper fit, form and function to reduce maintenance issues and increase longevity. The Metso C series jaw crusher is a compression type crusher. Feed material is crushed between fixed and movable jaw dies, engineered for the toughest feed materials in the primary crushing stage.
Matec Solutions help customers save total cost of ownership with reliable performance and durable wear life, we are the only supplier who promise full life cycle quality warranty, we take care of our customer and products at any time.
Matec Solutions supply different manganese jaw die profiles and thicknesses to achieve the perfect match for applications including quarrying, mining and aggregates.
Metso C100 jaw crusher parts list:
Part Number
Description
Part Number
Description
186872
FRONT END C100
706202557072
TAPERED SLEEVE 3525X80, 029J0080
187625
JAW PLT FXD C100B
706300788991
ELBOW ADAPTER 4C6MXS
206558
MECHANIC WEDGE ADJUSTMENT C100
706300790060
CNNCTN 8-8F42EDMXS
285479
GRILLE
706300790110
CNNCTN 8S6MXS
295032
INTERMEDIATE SHIM C100B
706300792353
CNNCTN 8M16F82EDMXS
312254
FASTENING ITEM C100
706300793205
PLUG 8FNMTXS
418621
LOCK PLATE C-JAWS
706301415000
HYDR PUMP 1LO5 (3,3 CM3) XHT
418708
FLAT PLATE C100B
706302164100
PROTECTIVE BELLOWS V6-1022 42CR764
418745
INTERMEDIATE ROD C100 EN10083-1 -36CRNI
706302339200
MSR ADAPTER 32000
418747
RING C100B
706303277000
PROTECTION CAP CAP-01
418748
PLATE C100B
706306138100
PRESSURE GAUGE 213.53.63.400BAR LM G1/4
418772
SPACER C100B S=50MM
707200241000
ELECTROLYTIC STARTER R120/260A
418773
FLAT PLATE C100B
707402076111
CONTACT BLOCK GV-AE11
418808
RING C100B
781326438100
CYLINDER 63/40X250KK (C100/ADJUST) 2643
418809
PIPE C100B
804007490000
WASHER LOCK DIN127-A10-FST-A3A
446122
INTERMEDIATE PLATE LT100S
805600216000
WRENCH OPEN END ISO3318-55
495394
WEDGE C100B
805600257000
WRENCH OPEN END ISO1085-30X36
495539
SUPPORT C100B,C125B,C140B,140BS,C160B
805600532450
RATCHET HANDLE 31 KR 25-50, 6256630
496605
CHEEK PLT LOW LT100S
814320037300
JAW, FIXED STANDARD 1P
582133
LIFTING LINK C63,C80,C95,C100,C105,C106
814320037400
JAW MVBL STANDARD 1P
801151
THROTTLE VALVE 9N-600-S
814320042100
JAW, FIXED QUARRY 1P
801152
PILOT OPERATED CHECK VALVE AM3UPAB1003
814320042200
JAW MVBL QUARRY 1P
801153
RESTRICTOR VALVE AM3QFABC40
814346590860
JAW, FIXED SUPER TEETH 1P
801168
SHUT-OFF VALVE FT290-14
814346591200
JAW MVBL SUPER TEETH 1P
801176
HEAT RESISTOR EO30
949611881800
PITMAN C100
801178
COUPLING BOX K7T
949611882000
REAR EDGE C100
801288
COUPLING ND 11
949615990100
SPRING 35X155X437 C95 C100 C105 C110 C3
801289
INTERMED FLANGE LS-250
949626147000
ECCENTRIC SHAFT C100 261470
801290
PRSSR REL VALVE AM3VMPC300
949626147100
DISTANCE SLEEVE C100 261471
801293
DIRECTIONAL VALVE AD.3.E.02.C.J.00.2 (1
949626354400
LIFTING LINK C63-C125 LEUAT 263544
801295
DIRECTIONAL VALVE AD.3.E.15.E.J.00.2 (1
949630788000
NUT, CAP TR44X7 C80-C125, C3055 307880
802272
PRESSURE GAUGE 213.53.63.250BAR LM G1/4
949630791400
COVER C100B,C110 307914
802291
PRESSURE SW X1T-4000-25
949630794000
TIGHTENING BUSHING C100B C110 307940
803921
HYDR HOSE 5705-04/SAE100R2T-04/57H4-06-
949630797400
SUPPORT HOLDER C80,CL80,C100 307974
803923
HYDR HOSE 5705-04/SAE100R2T-04/57H4-06-
949638649304
THRUST BRNG ASSY 386493-D
803925
HYDR HOSE 5705-04/SAE100R2T-04/57H4-06-
949638675800
INTERMEDIATE SHIM S=80 C100 386758
803928
HYDR HOSE 5705-04/SAE100R2T-04/57H4-06-
949641801000
DAMPER C100B 418010
904486
LUG TOGGLE PLATE LIFTING
949647103200
LOCK PIPE C80-C125, C3055 471032
908995
V-BELT PULLEY 212-10XSPB D=80
949647106000
TOGGLE PLATE L=600 C100 471060
909595
PUMP P203-8XNBO-1K6-24-2A4.12M04
949648703100
TIGHTENING WEDGE C100B 487031
910557
PITMAN ASSY C100
949648703200
TIGHTENING WEDGE C100B 487032
910564
BRACING INST C100B
949648703300
FILL WEDGE C100B 487033
913517
BUSHING C100R
949648703500
PLUG M36 C-MURSKAIN
914035
STOPPER C100R
949648705300
THREADED ROD TR 44X7 C80-C125, C3055 48
915025
SPRING CASING C100B-C125B, C3055
949648705400
BEARING HOUSING C80-C125, C3055 487054
915056
SPRING C100B-C125B, C3055
949648705500
LUG C100 CL100 487055
921060
SPRING GUIDE C100B, C110B
949648705600
COVER C80...C125, C3055 487056
921064
RETURN ROD C100
949648706100
TOGGLE SEAT C100 CL100 487061
927223
DIVIDER C63-C200 ER.927223
949648706400
LUG C100B C125B 487064
939031
SIDE PLATE C100
949648724100
CHEEK PLATE, UPPER C100,CL 80 487241
939032
SIDE PLATE C100
949648724200
CHEEK PLATE, LOWER C100,CL80 487242
945152
FEED HOPPER C100
949656360600
COVER C80...C125, C3055 563606
945458
FEED HOPPER INST C100
949656360700
JOINT PIN 30X115 C100 CL100 563607
7001530319
BOLT HEX ISO4014-M16X65-8.8-A3A
949656360800
FASTENING SHEET C100 CL100 563608
7001530527
SCREW HEX ISO4017-M24X90-8.8-A3A
949656360900
RUBBER PROTECTION C100,CL100 8X280X920
7001530621
BOLT HEX ISO4014-M30X90-8.8-A3A
186428-A
SUPPORT HOLDER C100B HORIZONTAL MOUNTI
7001530633
SCREW HEX ISO4017-M30X180-8.8-A3A
186428-B
SUPPORT HOLDER C100B HORIZONTAL MOUNTI
7001563064
NUT, HEXAGONAL ISO4032-M64-8-A3A
186429-A
SUPPORT HOLDER C100B HORIZONTAL MOUNTI
7001616311
SPRING PIN ISO8752-16X50-ST
186429-B
SUPPORT HOLDER C100B HORIZONTAL MOUNTI
7022023200
LINER
285547-A
FLYWHEEL C100 URALLINEN 10XSPB
406202557375
TAPERED SLEEVE 3525X75, 029J0075
312991-A
SUPPORT HOLDER C100B 312991 HORIZONTAL
406300555050
WASHER LOCK NL5
312991-B
SUPPORT HOLDER C100B 312991 HORIZONTAL
406300555080
WASHER LOCK NL8
312992-A
SUPPORT HOLDER C100B 312992 HORIZONTAL
406300555100
WASHER LOCK NL12
312992-B
SUPPORT HOLDER C100B 312992 HORIZONTAL
406300555250
WASHER LOCK NL24
389413-B
SUPPORT HOLDER
406303279869
V-BELT PULLEY SPB 250/10, 11125010S
389414-A
SUPPORT HOLDER
407200061000
SQUIRR CAGE MOTOR 2.2KW-230/400V-50HZ-1
389414-B
SUPPORT HOLDER
703100256100
BAND RUBBER CR, 8MM, BLACK, 10520003959
410862-A
EYE BOLT C100B, C110B, C125B
704006490000
SPLIT PIN ISO1234-8X50-ST-UNPLTD
418863-A
GUIDE PIECE C100B
704006830000
PLAIN WASHER DIN125A-5-140HV-A3A
418863-B
GUIDE PIECE C100B
704007290000
PLAIN WASHER DIN125A-36-140HV-A3A
910562-A
BELT GRD INST C100B, RHD
704007360000
PLAIN WASHER DIN125A-48-140HV-A3A
910563-A
PROTECTION INST C100, RHD
704007550000
WASHER SPRING DIN127-A20-A3A
MM0201289
HYDR MACHINERY T06.11.03 / 400V / 230V
704007570000
WASHER SPRING DIN127-A24-A3A
MM0211818
TOOL EQUIP C100
704100027000
HAMMER SCREW DIN261-M30X110-4.6 ER.4716
MM0241261
FLYWHEEL C100 , 10XSPB
704100027402
HAMMER SCREW DIN261-M36X400-4.6 ER.4716
MM0243126
HAMMER SCREW DIN261-M36X440-4.6 ER.4716
704100027405
HAMMER SCREW DIN261-M36X480-4.6 ER.4716
MM0243128
BRACKET C100
704100027417
HAMMER SCREW DIN261-M36X860-4.6 ER.4716
MM0243129
BRACKET C100
704100890000
SECURITY RING DIN471-30X1,5
MM0243130
BRACKET C100
704101460000
CIRCLIP DIN472-85X3
MM0243131
BRACKET C100
704103793000
CAP SCRW HEXSCKTHD ISO4762-M20X40-8.8-A
MM0244565
BRACKET C100 RIGHT HD
704103899900
CAP SCRW HEXSCKTHD ISO4762-M24X40-8.8-A
MM0244566
BRACKET C100 LEFT HD
704103915000
CAP SCRW HEXSCKTHD ISO4762-M24X50-8.8-A
MM0318473
ELCTRC SW OT250E03P, 1SCA022710R0100
704104480000
SCREW RET ISO4028-M16X20-45H-UNPLTD
MM0318505
FUSE RO32, 0418
704200700000
SCREW HEX ISO4017-M10X16-8.8-A3A
N01530333
BOLT HEX ISO4014-M16X130-8.8-A3A
704205248560
JOINT PIN ISO2340-B-30X160X140-ST
N01530423
BOLT HEX ISO4014-M20X90-8.8-A3A
704205555000
CLEVIS PIN ISO2340-B-40X200X178-ST
N01530428
BOLT HEX ISO4014-M20X80-8.8-A3A
704207120000
WASHER EN28738-30-A3A-160HV
N01530444
BOLT HEX ISO4014-M20X160-8.8-A3A
704207150000
WASHER EN28738-40-A3A-160HV
N01530530
BOLT HEX ISO4014-M24X110-8.8-A3A
704207920000
SPRING PIN ISO8752-16X50-ST-UNPLTD
N01530532
BOLT HEX ISO4014-M24X130-8.8-A3A
704209465000
CUP SPRING DIN2093-A100 100X51X6
N01530839
BOLT HEX ISO4014-M36X200-8.8-A3A
705301475000
BALL THRUST BRNG 51112
N01563036
NUT HEX ISO4032-M36-8-A3A
705501262100
V-BELT SET ISO4184-10XSPB 5600
N01623120
PLAIN WASHER ISO7094-20-100HV-A3A
ZX93000046
ELECTRICAL CABINET CONTROL CABINET
