ME Jaw Crusher

ME Jaw Crusher

Product Item:096

  • Product Detail
  • FAQs

Product Introduction

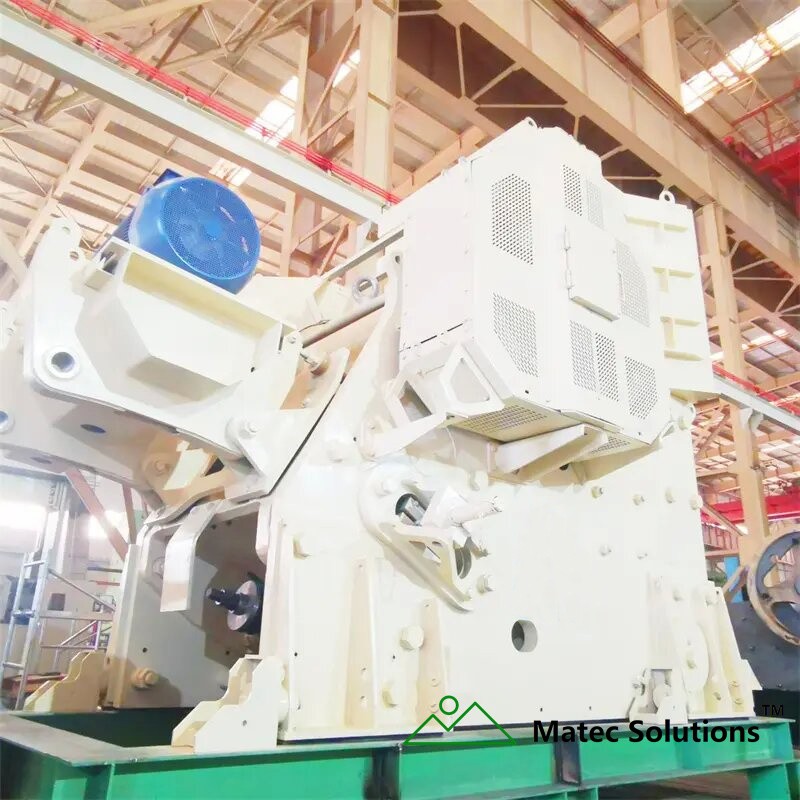

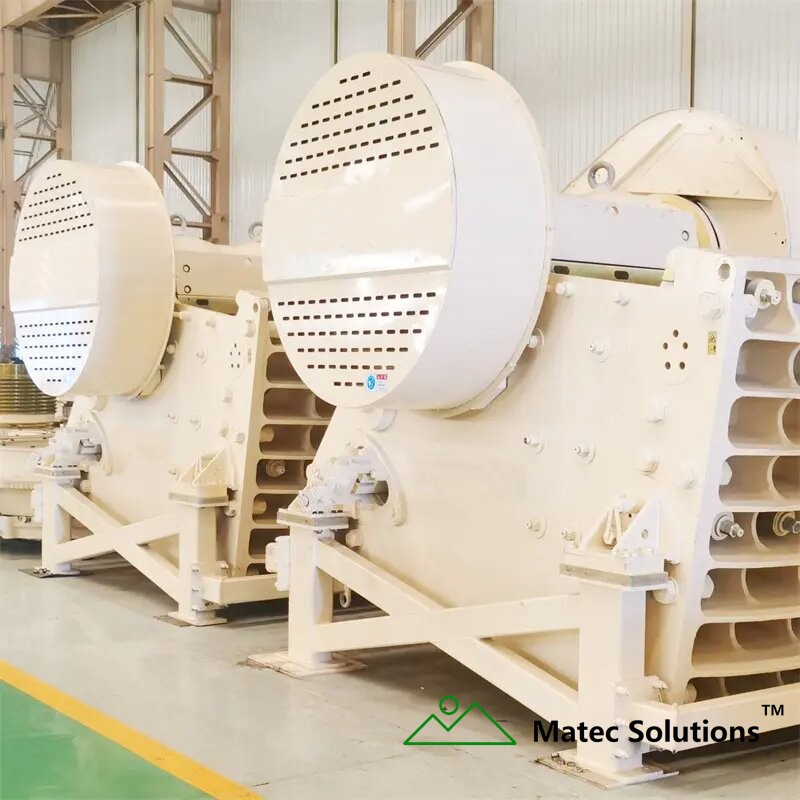

Matec Solutions ME jaw crushers are mainly used as primary crushers in aggregates production, mining operations and recycling applications. The product family consist of models of different sizes that are engineered to deliver the maximum productivity at the lowest operating costs.

Uncompromised reliability

All the frame components are casted using an alloy developed in-house especially for jaw crushers. In addition to solid casting, the crushers’ frame has a cellular, so-called honeycomb structure that, like in nature, has proven to be stronger and more durable.

High production and reduction

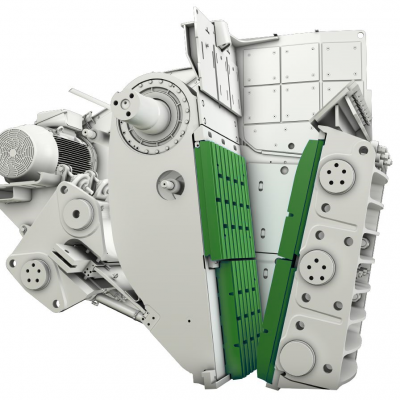

ME jaw crushers have an aggressive motion of the pitman and long stroke in the bottom of the cavity. A larger feed opening increases material intake and ensures that the rocks enter the jaw crusher’s cavity without restrictions. A steeper nip angle decreases operating costs by reducing wear on jaw dies and speeds up material flow down in the cavity.

Easy to install, operate, and maintain

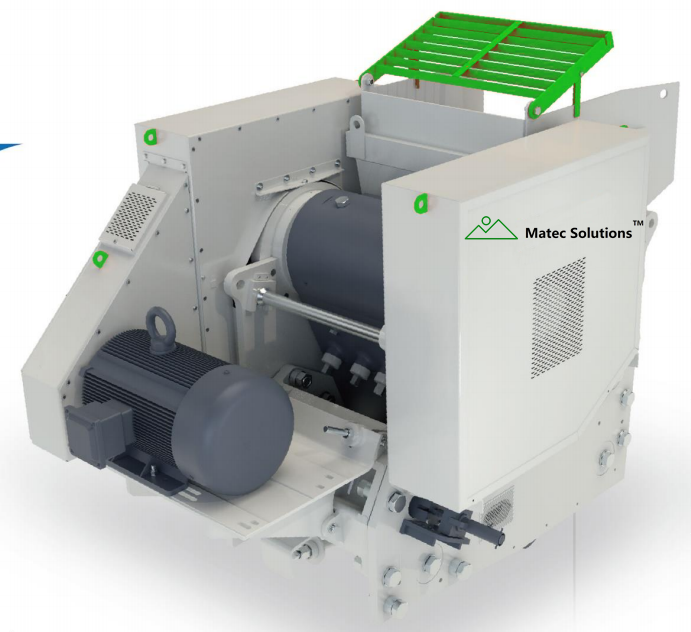

ME jaw crushers are designed modular to save time and installation costs. They can be installed within a few days, minimizing on-site engineering and fabrication.
